NOTE : Most of us would prefer that you used an approved radio
for PMR446. Mention of any expandable amateur transceivers will be made
solely for any interest value, and ONLY if they are unlikely to cause any problems :
o their power output is 500mW or less at 446MHz,
o they feature the 6.25kHz steps required,
o they can look the part,
o they can be reset if 'someone' wants a close look :o)
... if you must use one please keep your modulation low to protect adjacent
channels and don't use too much power or gainy antennas in busy areas.
Please treat the PMR446 service with respect!
NOTE 2 : Many radios are manufactured for both PMR446 and FRS, and there are
very few differences apart from cosmetic ones and channel frequencies. To see
the wide range of FRS radios please check out
epinions.com (all 2 way)
epinions.com (2 miles)
http://electronicsparadise.com/f/FRS/index.html
http://www.jesseshuntingpage.com/radios.html
www.collin.org/frs/guide/guide.html
http://www.provide.net/~prsg/frs-home.htm
FRS radios are submitted to the FCC for approval. The http://www.fcc.gov/oet/fccid website may contain various interesting documents for any particular model - pictures, test reports, circuit diagrams, manuals etc. Click "Equipment Authorization Search", and FRS radios are mainly the Equipment Class "FRF -Part 95 Family Radio Face Held Transmitter".
NOTE 3 : It can be difficult to tell just who makes radios, and where. Just because
a 446 radio has "BigNameCom" on it, they may have just added their name to a radio
built the other side of the world. Any information on this sort of thing would be
appreciated. Even when you discover some far east company that supplies radios for
western companies to put their name on, the actual manufacture of the radios can
be subcontracted out to yet another company.. which mentions it on their website
and things get very confusing!
When a radio is available under different brand names, the first one that comes to my notice gets all the specifications listed, and further clones all refer back to the 'original'. I will try and give pointers in BOTH directions so you can see which radios are the same as yours. If the original model is no longer made, or the actual manufacturer is discovered, an update may occur!
NOTE 4 : Headset connections. There are various 'standards', although
you can never be totally sure without reading the manual or asking those
who know! Examples :
(Cellphone (VOX) : 2.5mm stereo, tip mic, mid spkr, gnd)
ham speakermic, dual jacks 10mm spaced (PTT) : 3.5mm mono spkr, 2.5mm mic
(8mm spaced for Motorola, 12mm (+Stereo) for Kenwood)
2.5mm stereo : tip spkr, mid mic, gnd (Motorola plugs 2mm longer!)
3.5mm stereo : tip mic, mid spkr, gnd
- Radio headsets either designed for VOX (no PTT, mic audio always connected),
or PTT (a couple of k Ohms resistance between mic and gnd switches TX)
http://wildtalk.com/accessories/acs-compatability.htm
Easytalk
EXTERNAL PIC (OR
LOCAL)
(spotted 2002) A Tekcom (like PJ-117)
see http://www.marcucci.it/images/cataloghi/pdf/Lpd_pmr446.pdf
Blue and Yellow :
see http://www.astec.es
COM446 - a badged Multicom Pro
see http://www.astec.es

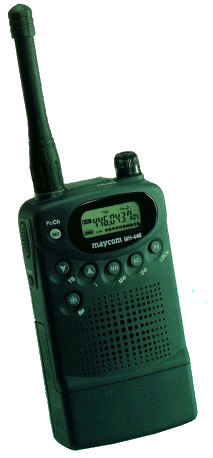

HM-446 - a badged Maycom MH-446
A J-Com JDG-415NX
see http://www.kortech.demon.co.uk/radios.htm
KTX-800
EXTERNAL PIC (OR
LOCAL)
Sold in UK for motorcycle use, e.g. :
http://www.newtronic.co.uk/pages/product-pages/bike2bike.html
A Kace Profitek
Funky 1
EXTERNAL PIC (OR
LOCAL)
A Hoffer 3381
http://www.aeg-itm.de/Bilder/pdf/AEG%20Funky%20German%20manual.pdf
Funky 50 (set of Funky 1)
Funky 60
EXTERNAL PIC (OR
LOCAL)
A Hoffer 6608
Manual http://www.aeg-itm.de/Bilder/pdf/BDA%20Funky%2060%2030.07.04.pdf
EURO-WAVE EXTERNAL PIC (OR LOCAL)
In Black, Yellow or Blue
GOOD : Rugged, scan, keylock, 124g, 80mm Height 50W 22D, 47 CTCSS (67,69.3-254.1), lit keys
Batt: 3AAA or NiMH (9/14) hours
seen as Entel Eurowave (Entel are UK distributors)
U.S. FRS version : Cherokee FR-460 (FCC ID Wireless Marketing Corporation MGPFR-460 - manual
at FCC site (0.47W)
LPD (434 MHz) : UHF-69
Korean (448MHz) : AH-4005
Manuals http://www.thiecom.net/ftp/alan
Alan Forum : http://www.myforum4free.com/alanuk/index.php?mforum=alanuk
421 EXTERNAL PIC (OR
LOCAL)
(Spring 2003) Smallest PMR446 radios currently available (53x88x28mm, 85g),
Black or Silver, no VOX, no Scan, no CTCSS
Batts: 3AAA
A Headline HL-109
manuals http://www.thiecom.net/ftp/alan/alan421/information/
441 EXTERNAL PIC (OR
LOCAL)
(2002) Smallest PMR446 radios currently available (54x87x37mm)
Black or Silver, NO CTCSS, VOX, beep +off, Scan, Dual Watch, baby monitor, sens < -116dBm / 0.35µV (12 dB SINAD)
Batts: 3AAA (35 hr standby)
A Headline HL-110
see http://www.thunderpole.co.uk/alan441.htm
or in 'porno' detail at http://www.neuner.de/alan441.htm
Manual : http://www.maplin.co.uk/pdf/RS66.pdf
German Manual : http://www.pmr446.de/katalog/alan441/alan441manual.pdf
Voted 'best PMR of the year, 2002' by the Spanish at http://www.radionoticias.com/clubpmr/mejores.htm
LPD version Alan 607
FRS versions Midland F10C & F12C (pic shows how small:)
EXTERNAL PIC (OR
LOCAL)
FCC ID 'MMAF12' (0.48W) (F12 has CTCSS, F10 hasn't)
FRS/GMRS versions FG-1 & FG-2, i.e. FCC ID 'MMAFG1'
443 EXTERNAL PIC (OR
LOCAL)
(noticed 2003) 89x53x32mm
Black or Silver, 38 CTCSS, VOX, beep +off, Scan, Dual Watch, baby monitor, sens < -116dBm / 0.35µV (12 dB SINAD)
Batts: 3AAA
German manual http://pmr446.de/katalog/alan443/alan_A443_de.pdf
445 BT EXTERNAL PIC (OR
LOCAL)
(2007) now with added Bluetooth
445 GPS EXTERNAL PIC (OR
LOCAL)
GPS version
(due Sept 2004)
38 CTCSS, scan, roger beep, vox, monitor, dual watch,
55x126x38 mm, 157g, sens. 0.35µV (12dB SINAD), sockets 2.5 & 3.5mm mono
Batts: 4AA
445 Sport EXTERNAL PIC (OR
LOCAL)
No GPS, but Compass and 'Trip computer' instead
451
EXTERNAL PIC (OR
LOCAL
/ SILVER PIC).
Schumacher version :
EXTERNAL PIC (OR
LOCAL)
Dual watch, beeps, 105g less batts, 50 x 95 x 25 mm, sensitivity better than -116dBm / 0.35µV (12dB SINAD)
Batts: 3AA
A Headline HL-451
Schumacher version available from maplin.co.uk - "finished in the Ferrari team colours. The perfect gift for racing fans, children or to keep in touch at the race circuit!"
456
EXTERNAL PIC (OR
LOCAL)
Also in black - (LOCAL)
GOOD: Scans (busy/free), baby monitor, dual watch, full 500mW, 38 CTCSS (67,71.9-250.3) 83 DCS,
Alert, Vox, 9 mems, charge jack, Roger Bleep selectable, sockets (speaker 3.5mm, mic 2.5mm),
sensitivity better than -116dBm / 0.35µV (12dB SINAD)
BAD : no s-meter, no tone scan (?)
Batts: 3AA
see http://www.thunderpole.co.uk/alan456.htm
and http://www.cbshop.com/midland_456.htm
See the Review here
"PRESSING THE FUNCTION AND RETURN BUTTONS ON POWER UP DOES PUT THESE RADIOS INTO 69 CHANNEL LPD MODE!" - but the PLL will probably not lock correctly.
FRS version : Model 75-515 14
- See http://www.midlandradio.com/frs/75-515.html
(LOCAL) (black)
FCC ID 'MMA75515' (0.495W ERP)
456R
EXTERNAL PIC
(FRONT+BACK)
(OR
LOCAL)
New version of the 456 - same features
"Hold down [call], [enter] and [fn] on start up,
it will change the output from 10mw or 500mw 'hi' or 'low'.
Hold down [enter] and [fn] at start up,
will different frequency modes with a hidden menu - but this does not work on all units.
If you want disable the roger beep you must hold [ENTER] key while switching on,
press [fn] key until the display shows the "oN" icon, select 'FF' using UP/DOWN controls,
to confirm your selection, press [ENTER] or turn the unit off and on."
Alan P3? EXTERNAL PIC (OR
LOCAL)
(2007) tba
Base 446
EXTERNAL PIC (OR
LOCAL)
38 CTCSS (std), scan, vox (3 levels), CTCSS tone detect, mic/spk jack (stereo 3.5mm),
may have different tones
on RX and TX, monitor, roger beep +off, lock, key bleeps +off, 270g, 140 x 110 x 45 mm,
better than 0.35uV for 12db SINAD, 21.4MHz/455kHz IF
Batts : 1 x 9V or DC jack
see http://www.albrecht-electronic.de/service/PMR446/base446/manual-anleitg.pdf
Blade 446 / Alan 777
EXTERNAL PIC (OR
LOCAL)
LPD/PMR 77 ch
38 CTCSS (std), vox, 85 x 40 x 19 mm & 75g
Batts : Li-Ion
see http://www.pmr-funkgeraete.de/shop/wws/stuff/alan777pre.pdf
HP-446 EXTERNAL PIC (OR
LOCAL)
50 CTCSS / 104 DCS, scans, vox, pro quality die cast chassis, sens < -116dBm / 0.35µV (12 dB SINAD)
Batts: 1300 NiMh battery and drop in charger
£160 price level (Thunderpole)
K1 EXTERNAL PIC (OR
LOCAL)
(2005) 38 CTCSS, scans, vox, 2.5mm socket, 72g x 83x50x27mm
Batts: AAA
Midland G5 EXTERNAL PIC (OR
LOCAL)
(autumn 2003) 38 CTCSS (std), scan, vox, keylock, roger bleep (+off), dual-use socket (headset/chg)
Batts: 3AAA
Manual http://www.albrecht-electronic.de/service/PMR446/Midland-G5/G5-english-manual.pdf
GMRS versions G-223/225/227(vibe)/300
i.e. FCC ID 'MMAG300' (400mW) - 4AAA batts
Midland G6 EXTERNAL PIC (OR
LOCAL)
(2006)
38 CTCSS, scan, vox, keypad lock, high/low power, 58 x 102 x 31 mm
Batts: 4AAA
Midland G7 EXTERNAL PIC (OR
LOCAL)
(2005) 38 CTCSS (std) PMR+LPD, vox, scan, monitor, 120g 122x58x34 mm, 3.5 / 2.5mm sockets
Batts: custom 6V 800mAh pack
Midland G8
(tba 2007) "same features of the 456r radio (over 968 chanels, built in intercom & VOX etc) it will also be completely waterproof to IPX7 standard (submersible)"
Midland G12 EXTERNAL PIC (OR
LOCAL)
(2006)
Pro Radio
EXTERNAL PIC (OR
LOCAL)
A 446 radio built into a headset. NO CTCSS?
Dual Watch, vox, beep (opt), scan, sens < -116dBm / 0.35µV (12 dB SINAD)
Manual :
http://www.albrecht-online.de/service/PMR446/Proradio/PRORADIO-engl.pdf
see www.neuner.de/alan_proradio.htm
GP One
EXTERNAL PIC (OR
LOCAL)
With GPS!
see http://www.neuner.de/aegpone.htm
Manual (eng) :
www.albrecht-online.de/service/PMR446/Albrecht-GP1/user-manual.pdf
A J-Com JGF-2002N
"Multicom Pro"
EXTERNAL PIC (OR
LOCAL)
Same as,err, Multicom Pro :o)
TecTalk
EXTERNAL PIC (OR
LOCAL)
Dual watch, scan, vox, 38 CTCSS (67,71.9-250.3)
Batts: 4AAA
manual : http://www.wipe.ch/Downloads/Tectalk_User-manual.pdf
A J-Com JDP-408H
... FM version
EXTERNAL PIC (OR
LOCAL)
manual :
www.albrecht-online.de/service/PMR446/Tectalk-FM/User-manual.pdf
at-a-glance sheet :
www.albrecht-online.de/service/PMR446/Tectalk-FM/Tectalk-FM-english.pdf
... TecTalk MAG
EXTERNAL PIC (OR
LOCAL)
Mag-mount version.
TecTalk Action
EXTERNAL PIC (OR
LOCAL)
(summer 2003), CTCSS, vox, adjustable power 500 or 50mW, 55 x 160 x 30 mm, Gewicht: 110 g
Batts: 3AA
A Maxon M-222P
TecTalk Contact
EXTERNAL PIC
(OR LOCAL)
38 CTCSS (67,71.9-250.3), 101 x 66 x 35 mm, 130g
Batts: 3AA
See : http://www.albrecht-online.de/aktuelles13.htm
Manual : http://www.poly-electronic.ch/download/tectalk-contact.pdf
Also seen as Jopix 446, Tandy Procom 446 (http://www.telsan.com/pmr.htm), Radmor 31015 Viper
FRS version : RadioShack 21-1813 (FCC ID 'AAO2101813' .34W ERP)
TecTalk FreeStyle
EXTERNAL PIC (OR
LOCAL)
An EPC Tech KF-310
TecTalk FreeStyle MAG
EXTERNAL PIC (OR
LOCAL)
An EPC Tech KF-310, connected by a fixed run of coax to a mag mount quarterwave. 12V car power lead.
In development during Summer 2003, not yet approved?
see http://www.446user.co.uk/forum_topic_448.html
and http://www.pmr-funkgeraete.de/shop/
TecTalk Joker EXTERNAL PIC
(OR LOCAL) Autumn 2002
A Hoffer 3330
TecTalk Office
A TTi FRS-1000 variant
TecTalk Smart
A TTi PMR-120TX
TecTalk Pro
A TTi TX-1446
http://www.alcon-stc.com.tw/e/i.htm
see http://www.pihernz.es/esp/productos/pmr_446.html
TWX-2000A (simplex repeater)
EXTERNAL PIC (OR
LOCAL)
3.5 x 2 x 1 inches, 4AAA, 2.5mm stereo socket with adaptor, roger bleep
FR-8
EXTERNAL PIC (OR
LOCAL)

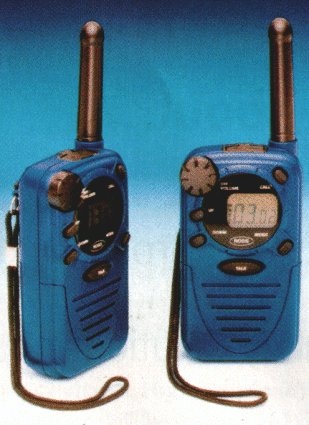

Black version of the Ross Callfree
see http://www.alecto.info/int/fr8.html
See VIVANCO REVIEW, hints and tips
FR-22
EXTERNAL PIC (OR
LOCAL)
A Hoffer 3320
see http://www.alecto.info/int/fr22.html
FR-28
EXTERNAL PIC (OR
LOCAL)
A Victory VC-968
see http://www.alecto.info/int/fr28.html
Manual (german) http://www.alecto.info/int/FR-28.PDF
FR-30
EXTERNAL PIC (OR
LOCAL)
An Art ProTech TC-209 (2004)
see http://www.alecto.info/int/fr-30.html
Well spotted Marc van den Akker, Nijmegen Nederland, thanks
DJ-C7
EXTERNAL PIC (OR
LOCAL)
(2004) 300mW (500 with external power) Dual-band amateur handheld
with 6.25kHz steps. Probably expandable to 446; the DJ-C7T USA model does
420-450.
39 CTCSS. 87.5-108 Broadcast RX, 108-174 & 380-512 MHz optional
RX with scanning. Airband with 8.33. 200 memories.
58 x 96 x 14.5mm, 102g inc batt & ant. Cloning with optional cable.
SMA antenna. Li-Ion batt pack. 5kHz deviation TX only.
http://www.alinco.com/Products/DJC7/
Manual : http://www.fbradio.se/bilder/alinco%20djc7.pdf
DJ-SR1
EXTERNAL PIC (OR
LOCAL, BIGGER)
118g, 110mm Height, 39 CTCSS (67,69.3-250.3)
GOOD: Fold-down antenna, scanning, S-meter, high/low power,
Auto-power off (selectable), roger bleep selectable,
sensitivity -120dBm / 0.22µV (12dB SINAD)
BAD : No DCS, crazy CTCSS codes - 88.5Hz=A02! (see list)
Batts: 3AA / NiCd / DC (40/14 hours)
£100 price level
"it's an excellent radio, has 20 memories plus calling channel (programmable). Has sub-tone scan, channel scan and memory scan. A button to un-mute the squelch, back lit display that can be set to stay on or turn off automatically. And... loads more things... it makes all the others look a bit silly at the price. Oh yes, high and low power setting, receive alarm etc etc etc...
Get one, they are excellent... and sensitive too.
review http://www.arniesairsoft.co.uk/reviews/alinco_djsr1/alinco_djsr1_review.htm
Tip : By holding "UP" during power-on, you can extend the number of memories from 20 to 32 (00 to 1F in Hex). Switching back to 20-memory mode can be done by holding SCAN during power-on.
Mod : http://212.242.161.184/alinco/modifikation.htm
Manual (French PDF) : http://www.cbhouse.fr/notices/lpd/dj-sr1.pdf
(German PDF) : www.cbradio.cz/doc/Alinco/PMR%20DJ-SR1/manual.pdf
FRS Version : DJ-S46 : FCC ID UG5U5DJS46 ".31 W ERP" (now EUG5U5DJS46 ?)
DJ-S446
EXTERNAL PIC (OR
LOCAL)
(2002?) 38 CTCSS, cloning, 100 mems, theft alarm, scans, external power
56 x 102 x 30 mm, 100g
Batts: ?
DJ-S45 CQL/S
EXTERNAL PIC (OR
LOCAL)
39 CTCSS, scan, 57W x 98H x 29.7D mm
Batts: 2AA
L=Long antenna, S=Short
see http://www.alinco.com/Products/DJ-S45CQ/DJ-S45CQ.pdf
DJ-V446
EXTERNAL PIC (OR
LOCAL)
39 CTCSS, S-meter, scan and skip, IPX7 waterproofing, 22.8 x 110 x 36.4 mm, 280g,
1750Hz toneburst (!)
Batts: 7.2/7.4 Li-Ion/NiMH packs
TC-107
EXTERNAL PIC
(OR LOCAL)
38 CTCSS, vox, scan, water resist, shock proof, keylock
Batts: 3AAA
Seen as Binatone Roamaround 200, Logicom Spider 500
LPD TC-101
FRS TC-102 : FCC ID 'OL4APT102210101' (Artprotech Co. Ltd - HK) (manual at FCC site)
... 19.21dBm 0.083W ERP!
TC-109
EXTERNAL PIC (OR
LOCAL)
Scans, Vox, Backlit LCD, Battery low indicator, Digital volume control
usually NO CTCSS (but some versions have it), 5.5 x 15.2 x 3.4 (cm)
Batts: 3AA
Seen as Binatone MR100, Zodiac Me2You, Logicom Spider 700, Commodore Funpack II (twin pack) CFG-100, Kombix Rocky, Tevion PMR 2003, Swallow (www.force4.co.uk), Danita TC-109
Manual (as TC-109ER) http://download.wrx.sk/pdfs/walkie-talkie/TC-109ER_en-manual.pdf
French http://www.logicom-france.fr/sav/notices/spider700.pdf
LPD: TC-139 has CTCSS
FRS: TC-129 has CTCSS (FRS14K-2 Columbia Tel.) FCC ID OL4APT129210619 (11.55dBm / 0.014W ERP!)
Mods : http://w1.429.comhem.se/~u42903569/tc109/index109.html
Key tones on/off : press the speak button while switching on.
TC-209
EXTERNAL PIC (OR
LOCAL)
Updated TC-109. "FM radio" ?
(black or silver) 38 CTCSS, vox / baby call, key bleeps, monitor, auto power off
Batts: 3AA or 4AAA?!
Seen as Zodiac Me2You Radio, Commodore Fun Pack 40, Alecto FR-30
TC-309
EXTERNAL PIC (OR
LOCAL)
38 CTCSS, scan, 3 level vox, stopwatch, baby monitor, batt level monitor, monitor,
keylock, auto power off (can be disabled), key beeps (+off), roger bleep (+off), 50 x 99 x 29mm,
black silver or blue
Batts: 4AAA NiMH - supplied with docking charger
Manual http://www.logicom-france.fr/sav/notices/fx40.pdf
Seen as Logicom FX40 Plus, Zodiac You2Me
A hint of Binatone MR500?
TC-609
A Daxian 2388
Some people note many similarities with Motorola radios, possibly explained by the link between Atlinks and the manufacturer Giant.. as used by Moto..
35820
EXTERNAL PIC
(OR LOCAL)
http://www.atlinks.com.hk/product_item.asp?id=188
http://www.atlinks.com.hk/Customize/Product/Brochure/35820-35821.pdf
"a T4502 under the skin?"
Seen as BT Freeway Mini, General Electric GE-35820, Challenge Activate SL50, Master Smile. Australia: Oricom PMR555.
see FCC ID 'K7GT4400' (Giant) 0.07W!
35830
EXTERNAL PIC
(OR LOCAL)
38 CTCSS, scan, vox
http://www.atlinks.com.hk/product_item.asp?id=186
http://www.atlinks.com.hk/Customize/Product/Brochure/35830-35831-35832.pdf
a T5522 under the skin?
Seen as BT Freeway Pro, General Electric GE-35830. Australia: Oricom PMR888.
FCC ID : 'K7GT8270D' (Giant T8270D) can do 0.5W ERP
FCC ID 'K7GT8260A'
35835
EXTERNAL PIC
(OR LOCAL)
http://www.atlinks.com.hk/product_item.asp?id=189
http://www.atlinks.com.hk/Customize/Product/Brochure/35835-35836-35837.pdf
Seen as Challenge Activate DL500, General Electric GE-35835,
THOMSON TELECOM (from Giant)
FCC ID 'K7GT6100' (Giant T6100) 0.25W ERP
35873
the origin of the Kace Profitek!
several models not yet seen available
BMR008
EXTERNAL PIC (OR
LOCAL)
(found 2004)
38 CTCSS, 115 x 65 x 28 mm (excl antenna), scan, vox, key lock, 10 mems, batt indicator, clock, alarm, stopwatch,
10 paging tones, range detection, charging, power save, headset socket
Batts: 4AAA
PMR2008
EXTERNAL PIC (OR
LOCAL)
(found 2004)
38 CTCSS, 115 x 65 x 28 mm (excl antenna), key lock, 10 mems, batt indicator, clock, alarm,
10 paging tones, range detection, charging, power save, headset socket
Batts: 4AAA
PMR2008-01
EXTERNAL PIC (OR
LOCAL)
(found 2004)
38 CTCSS, 115 x 65 x 28 mm (excl antenna), key lock, 10 mems, batt indicator, clock, alarm,
stopwatch, conference call?, auto channel changing?,
10 paging tones, range detection, charging, power save, headset socket
Batts: 4AAA
PMR2008-02
EXTERNAL PIC (OR
LOCAL)
(found 2004)
38 CTCSS, 115 x 65 x 28 mm (excl antenna), key lock, 10 mems, batt indicator, clock, alarm,
stopwatch, conference call?, auto channel changing?,
10 paging tones, range detection, charging, power save, headset socket
Batts: 4AAA
PMR3008
EXTERNAL PIC (OR
LOCAL)
(found 2004)
38 CTCSS, scan, 103 x 57 x 26 mm (excl antenna), key lock, 10 mems, batt indicator, clock, alarm,
10 paging tones, range detection, charging, power save, headset socket
Batts: 4AAA
PMRS 838 EXTERNAL PIC (OR LOCAL)
a J-Communications JDP-414H
Shiro is a fully owned subsidiary :
http://www.shirocorp.com/telecom_pmr.htm
PMR 3000
N/A : see LinQ PMR 2000
PMR 3000 R
EXTERNAL PIC (OR
LOCAL)
No CTCSS, scan, roger bleep, 8 level Volume Control,
Automatic power save,
Battery low warning tone,
Useable Sensitivity > -116dBm,
Standby Time: About 30 hours,
84mm x 53mm x 29mm
Batts: 3AAA, 4.5VDC, 700mAh, or Ni-MH rechargeable
seen as LinQ PMR 4000, ITT Willy?!, Shiro SA1100
PMR 5000
EXTERNAL PIC (OR
LOCAL)
(2004) 38 CTCSS, scan, vox Useable Sensitivity > -116dBm
Batts: 4AAA
Speaker/Mic Jack, 6 Calling Tones, Auto Power Save, Key Lock, Power Level indicator (4 level),
Volume Adjustment (8 level), Splash Proof (improved reliability for outdoor use),
Clock / Alarm / Stopwatch (Option), Charger Pod (Option),
LCD (20mm x 15 mm),
140 x 60 x 30 mm (inclusive of Antenna at 40mm)
seen as LinQ PMR 5000, Shiro SA1130
BXD-320
EXTERNAL PIC (OR
LOCAL)
38 CTCSS (optional from manuf.), scan, torch, vox, monitor, Key tone/roger beep, keylock.
Batts: 4AAA
(Also S320 from BXD Enterprise, from New Solution Electronics Co Ltd., and from Conda Electronics)
BHT-5015
EXTERNAL PIC (OR
LOCAL)
38 CTCSS Subcodes, scan, VOX, lock, Key tones, Roger beep,
Sockets for external earpiece & microphone, Charging, Belt Clip
USD 9.00 each!
Sold on by PEARLAND FAREAST LIMITED, HK
Seen as PMR0501 from Conda Electronic Technologies
PMR 3000R
Like the Aztech/LinQ
RD-008
A Trendy Blue TB5095
RD-028
EXTERNAL PIC (OR
LOCAL)
same as the Ruidian one!
RD-038
EXTERNAL PIC (OR
LOCAL)
vox, scan, time
RD-168
EXTERNAL PIC (OR
LOCAL)
vox, scan, time, 3AAA
RD-268
EXTERNAL PIC (OR
LOCAL)
vox, scan, time, 3AAA
BD-PMR446
EXTERNAL PIC (OR
LOCAL)
2004. 38 CTCSS, milspec tough, 50 x 110 x 30 mm (without antenna, antenna 100mm) weight 220g with antenna
and batts, PC programmable
Batts: custom pack, 600mA NiMH
Supplied with memory channels 1-8 as 446-1 to 446-8, and then 9-16 as the same but with CTCSS 88.5
201
EXTERNAL PIC (OR
LOCAL)
same as Doro/Audioline PMR Easy 007
Action 850
EXTERNAL PIC (OR
LOCAL)
(Noticed 2006) 38 CTCSS, vox, vibe, 5 call tones
Batts: docking charge
Adventurer 100
EXTERNAL PIC (OR
LOCAL)
(Noticed late 2004). Yellow, orange or blue. 38 CTCSS
Same as Topcom Twintalker 6800
EK1000
EXTERNAL PIC (OR
LOCAL)
(late 2004) An On-Real FX-50 - with 38 CTCSS, vox
EK1000+
EXTERNAL PIC (OR
LOCAL)
(mid 2004) A Nation Ford 'Mini-FRS'
Argos - 553/0599
Expedition 2 / Expedition 100
EXTERNAL PIC (OR
LOCAL)
Noticed summer 2004. Wristwatch PMR with 38 CTCSS
from Argos - 553/0616
Roamarounds : this range was amongst the first lot of 446 radios, but were replaced by MR models after a year or two.
Roamaround 100
EXTERNAL PIC (OR
LOCAL)
The same as the Goodmans 114, but in yellow or black.
Argos £40 (cat# 547/5984) pair:£70
See VIVANCO REVIEW, hints and tips
Roamaround 200
(LOCAL)
An ArtProTech TC-107
Roamaround 300 (LOCAL)
38 CTCSS
MR100
EXTERNAL PIC (OR
LOCAL) New in Jan 2002
An ArtProTech TC-109 without CTCSS
Argos £25 (cat# 547/6608) pair:£50
MR150
EXTERNAL PIC (OR
LOCAL)
(2005) No CTCSS?
Batts: 3AAA
MR180
EXTERNAL PIC (OR
LOCAL)
(2006) Like the MR200 but No CTCSS - smaller display, two buttons missing, different colour power button.
MR200
EXTERNAL PIC (OR
LOCAL) summer 2002
A Hoffer 3320
from Argos, etc.
Manual (German, PDF) : http://www.pmr446.de/katalog/binatone/manual_dl.pdf
MR250
EXTERNAL PIC (OR
LOCAL)
Noticed late 2003. A Hoffer
from Comet, etc.
MR300
EXTERNAL PIC
(OR LOCAL) summer 2002
A Hoffer 3380
from Argos, etc.
MR 500
EXTERNAL PIC (OR
LOCAL)
An early MR number, no longer sold at same time as MR 100,200,300,600
38 CTCSS, with headset, VOX
Batts: 4AAA (33 hours)
From : http://www.argos.co.uk (search for two way radio)
£50 (#547/6000) pair:£90
MR 600 / 610
EXTERNAL PIC (OR
LOCAL) new in Jan 2002
A Victory Concept VC-968
MR 610 : pair with black sides, was a special 35 quid promotion from Maplin, with charging.
From : http://www.argos.co.uk (search for two way radio)
£70 pair (#547/6622)
MR620
EXTERNAL PIC (OR
LOCAL)
(late 2004) An On-Real FX-60
MR 650
EXTERNAL PIC (OR
LOCAL) new find in Jan 2004
A Hoffer 6808
From : http://www.argos.co.uk (search for two way radio)
£40 pair (#553/0520)
MR 700
EXTERNAL PIC (OR LOCAL)
First seen Jan 2003
38 CTCSS, FM radio, Torch - super bright LED, Panic alarm, Backlit LCD, Stopwatch,
Digital speaker volume control,Headsets with changeable fascia.
Batts: ?
From : http://www.argos.co.uk (search for two way radio)
£99 twin pack (#553/0173)
Terrain 550
EXTERNAL PIC (OR
LOCAL)
38 CTCSS, vox, Vibe alert,Keypad lock,
"TRUSOUND" noise reduction
Batts: 4AAA
Trek 100
EXTERNAL PIC (OR
LOCAL)
(2005) 38 CTCSS, scramble, vox, Mosquito Repellent!, 10 call tone melodies, Stopwatch,
A Hoffer 2203
Some familiar models there!
ComPro 446 EXTERNAL PIC (OR
LOCAL)
Blue version : EXTERNAL PIC (OR
LOCAL)
38 CTCSS (67,71.9-250.3), 11 x 8 x 3.5 cm, 155g with batts, 470mW, sensitivity 1.24 µV 12 dB SINAD, Scans (6.6 ch/sec),
roger bleep
Batts: 4AAA
see http://www.cbradio.cz/pmr/bowtech.php3
see http://www.btinternet.com/~srp.trading/PMR446.htm
see http://www.e-connectic.com/fr/dept_6.html
Available as Commtel ComPro 446, Quasar Electronics PMR435 Wireless Motorcycle Intercom ( http://www.quasarelectronics.com/PMR435.htm ), and in Spain as Mx Onda MX-BR100, Skytec
FRS BR-100 : FCC ID 'IJNBR-100'
FX-5
EXTERNAL PIC (OR
LOCAL)
an On-Real FX-25
FX-10
EXTERNAL PIC (OR
LOCAL)
an On-Real FX-10
FX-20
EXTERNAL PIC (OR
LOCAL)
an On-Real FX-20
FX-25
EXTERNAL PIC (OR
LOCAL)
Same as Topcom Twintalker 6800
FX-30
EXTERNAL PIC (OR
LOCAL)
a Nation Ford 'Mini-FRS'
FX-50
EXTERNAL PIC (OR
LOCAL)
Wristwatch PMR, vox, 500mW, 48x25x71 mm, 84g
Batts: Li-ion
FX-100
an On-Real FX-100
FX-Adventure
EXTERNAL PIC (OR
LOCAL)
a Taejin 1298
Freeway
EXTERNAL PIC (OR
LOCAL)
made by In Tech Electronics
2001. Black & Silver with red or blue insert, £80/pair from Argos
38 CTCSS (67,71.9-250.3) +off (00), low batt warning, VOX via headset socket, 8 volume settings,
sensitivity -119dBm (12dB SINAD), side PTT
NO scan
Batts: 4AAA (docking re-chg, 14h charge)
Manual (German+English) : http://www.thiecom.de/pdf/audioline008.pdf
http://www.thiecom.net/ftp/audioline/008/audioline008.pdf
http://www.maplin.co.uk/pdf/N96AR.pdf
"the transmitter seemed to be stronger than the others (?) and the clarity over distance (1km) better. Well done BT - a great product"
Also seen as Audioline PMR Easy 008+, Switel WT 117
Headset : 3.5mm speaker, 2.5mm mic/PTT
Freeway (Solo) - Graphite
EXTERNAL PIC (OR
LOCAL)
late 2002. Graphite grey version of the Freeway
Press release : www.btcppressoffice.co.uk/products/newproducts/freeway_graphite.html.htm
Freeway (Solo) - Black
EXTERNAL PIC (OR LOCAL)
First seen Jan 2003 at
http://www.argos.co.uk (search for two way radio)
£60 (#553/0197)
Freeway FM - Graphite / Metallic Blue
"Coming soon" noticed, Summer 2003
at http://www.rocom.co.uk/top/radios/radios.htm
Different headset connections? A vox headset sold by withandwithoutwires.com : "Please note that this product is only compatible with the new BT Freeway FM personal mobile radios and will not work with the standard BT Freeway personal mobile radios."
Seen as Switel WT119 (see there for manual link)
Freeway Mini
EXTERNAL PIC (OR
LOCAL)
2004. No CTCSS? Scan, battery save, talk confirmation tone / roger beep, keypad tones, monitor
Batts: 3AAA
An Atlinks 35820
Manual http://www.bt.com/userguides/downloads/freewaymini.pdf
Freeway Pro
EXTERNAL PIC (OR
LOCAL)
2004. 38 CTCSS, vox, 'Headset Port' 3.5mm stereo, 'RF Signal Indicator', Keypad Lock
Batts: 3AA - rechg. (docking charge)
An Atlinks 35830
Manual http://www.bt.com/userguides/downloads/freewayprotwin.pdf
Power Talkie X-300
EXTERNAL PIC (OR
LOCAL)
another version of the Goodmans 114
PDF Manual http://www.busch-model.com/sf/images/2657anl.pdf
See VIVANCO REVIEW, hints and tips
Profi Talkie 2 - a Hoffer 3380
http://www.busch-model.com/sf/2652.htm
a J-Com PM1500XTM
Activate DL500
EXTERNAL PIC (OR
LOCAL)
38 CTCSS, 500mW, Powersave, 10 Call tones, "Nuisance delete"
Batts: 4AAA
Argos 553/0575
Also seen as .. THOMSON TELECOM (from Giant) GE 35835 ( General Electric PMR "Combo Set" ) ?
Activate GS100
EXTERNAL PIC (OR
LOCAL)
(2006) A Hoffer 100 EU
Activate GS325
EXTERNAL PIC (OR
LOCAL)
Argos. A Victory VC-989
Activate SL50
EXTERNAL PIC (OR
LOCAL)
Atlinks 35820
Argos 553/0393
C431
EXTERNAL PIC (OR
LOCAL)
"PMR-446 Series Radio Transceiver for Commercial Uses"
Approval specification: ETS 300 086, Construction specifications: MIL-810D
C446
EXTERNAL PIC (OR
LOCAL)
38 CTCSS, vox, dual-band capable, 54 x 112 x 34 mm, 350g, key lock, Sockets for external mic/ch,
external speaker, charge (on battery pack), dual watch
Batts: NiMH pack 4.8V-700mA/h
seen as Lafayette Duetto, Kombix PMR-8
http://www.asiansources.com/ctisound.co
T-61
EXTERNAL PIC (OR
LOCAL)
(like a VVV)
38 CTCSS code, vox, Monitor, Key tone ON/OFF,
Roger tone ON/OFF, Key lock, Call tones selection
FRS-120
EXTERNAL PIC (OR
LOCAL)
another minitalk...!
T-140
EXTERNAL PIC (OR
LOCAL)
38 CTCSS, vox, headset socket
T-180 / T-200
EXTERNAL PIC (OR
LOCAL)
Noticed 2004
T-190
EXTERNAL PIC (OR
LOCAL)
LCD wristwatch 446, like the Trendy Blue TB5095
38 CTCSS, scan, vox, key bleeps (+off), roger beep (+off)
Batts: 3AAA
Powered by 3 x AAA batteries
T-191
EXTERNAL PIC (OR
LOCAL)
wristwatch, noticed 2004
T-192
EXTERNAL PIC (OR
LOCAL)
wristwatch, noticed 2004
38 CTCSS, scan, vox, Hidden antenna in wrist strap,
"Tong signal for the transmitter activity",
Key tone ON/OFF, Roger tone ON/OFF
Batts: 3AAA
FCC ID 'OK9-1-80000'
PMR-LC1 - Economy
EXTERNAL PIC (OR
LOCAL)
no CTCSS
see http://www.tekcity.com.hk/EV-PMR%20LC1.htm
PMR-SC1 - "Fantasy" version
EXTERNAL PIC (OR
LOCAL) (USA version = FRS-SC1)
126g, 108mm x 62mm x 28.5mm, 38 CTCSS, 6 colours, clock/stopwatch/alarm
Batts: 4AAA (40 hours max)
see http://www.tekcity.com.hk/FV-PMR%20SC1.htm
The USA Cobra FRS range: http://www.cobraelec.com
some manuals http://www.dectel.be/f_manual.htm
Models 100/250/300 were amongst the earliest 446 radios, and are no longer generally available.
Possible connection to In Tech Electronics Ltd (HK) : model 100 has FCC ID NV6FRS100A
Model 100
EXTERNAL PIC (OR
LOCAL)
Model 250
EXTERNAL PIC (OR
LOCAL)
Model 300
EXTERNAL PIC (OR
LOCAL)
150-166g, 101mm H, lock, clip, dock-charge, vibe-alert, splash-resist, conns,
selectable Roger bleep, 38 CTCSS (67,71.9-250.3) +off (250 & 300 models)
GOOD: Fold-down antenna, batt-level, batt-saver, 8 mems, recall, scanning (300),
sens -119dBm / 0.25uV (12dB SINAD)
BAD : no DCS
Batts: 4AAA / NiMH pack (24 hours)
£100 price level
Transmission1 review :
http://www.transmission1.net/pmr446/review-cobramicrotalk250.html
FCC ID 'BBOFRS300' (0.46W ERP)
100: FCC ID 'NV6FRS100A' from "In Tech Electronics"
MT110
EXTERNAL PIC (OR
LOCAL)
Black or yellow,
"Only 8 Channels" (No CTCSS?!), Incoming call alert, SuperFlex Antenna, 98g, 110x63x30mm,
sens -119dBm / 0.25uV (12dB SINAD), 3.5mm/2.5mm spkr/mic sockets
Batts: 4AAA
see http://www.thunderpole.co.uk/mt110.htm
FRS: FCC ID 'BBOFRS110A' (FCC site has manual)
MT115
EXTERNAL PIC (OR
LOCAL)
Blue or red, As MT110 but with AM/FM radio
see http://perso.wanadoo.fr/gotech/pmr_cobra.htm
MT150
EXTERNAL PIC (OR
LOCAL)
No CTCSS/DCS, Call alert, Roger beep, Key tones, no keys lock, Power save, 129.1 x 50.8 x 36 cm 67g,
LCD display - no backlight
Batts: 3AAA
MT200
EXTERNAL PIC (OR
LOCAL)
2006
MT220
EXTERNAL PIC (OR
LOCAL)
Grey or violet, 38 CTCSS, Incoming call alert, SuperFlex Antenna, no memories, no scan, 98g, 110x63x30mm,
sens -119dBm / 0.25uV (12dB SINAD)
Batts: 4AAA
FCC ID BBOFRS220B
MT305
EXTERNAL PIC (OR
LOCAL)
38 CTCSS, Incoming call alert (vibe), memories, scan, 98g, 110x63x30mm,
sens -119dBm / 0.25uV (12dB SINAD)
Batts: 4AAA 20/25h
manual http://www.skywatcher.org/pmr446/en/Cobra_MT305/mt305_jpg_en.zip
FCC ID BBOFRS305
MT500
EXTERNAL PIC (OR
LOCAL) (summer 2002)
No CTCSS, roger bleep, sens -118dBm / 0.28uV (12dB SINAD),
Polycarbonate, 150 g (without battery), 63 x 108 x 25 mm
Batts: 4AAA "20 hours on full charge"
MT525
EXTERNAL PIC (OR
LOCAL)
a version of the MT500 (2003), with 38 CTCSS and keylock
manual:
http://www.cobra.com/intl/pdf/MT525/MT525-British.pdf
MT550
EXTERNAL PIC (OR
LOCAL)
38 CTCSS, vox, keylock, roger beep (+off), baby monitor, Water Resistant
manual:
http://www.cobra.com/intl/pdf/MT550_EU_MANL/MT550_British_MANL.pdf
MT700 EXTERNAL PIC (OR LOCAL) (summer 2002)
A Maxon MT-700 with no scan or vibe-alert
US FRS version FRS-307 (FCC ID 'BBOFRS307C', 285mW ERP)
MT725
EXTERNAL PIC (OR
LOCAL)
a version of the MT700 (2003), with scan and vibe-alert
manual:
http://www.cobra.com/intl/pdf/MT725/MT725-English.pdf
MT750
EXTERNAL PIC (OR
LOCAL)
manual:
http://www.cobra.com/intl/pdf/MT750_EU_MANL/MT750UK_MANL.pdf
MT900
EXTERNAL PIC (OR
LOCAL) (summer 2002)
38 CTCSS, Vox, mem/ch scan, scrambling, vibe alert, water resist, 10 memories, dual watch,
flashing LED 'power on', roger bleep, 5 ring tones, 'range extender', key bleeps, 113g, 106 x 58 x 30mm
Batts: 4AAA NiMH
Spec sheet : http://www.neuner.de/mt900pro_2.jpg
MT925
EXTERNAL PIC (OR
LOCAL)
a version of the MT925 (2003), with 83 DCS, and 10 ring tones
manual:
http://www.cobra.com/intl/pdf/MT925PRO/MT925-English.pdf
MT950
EXTERNAL PIC (OR
LOCAL)
38 CTCSS, 83 DCS, Scan (Channel, CTCSS, DCS, 10 Memories), vox, vibe,
Water Resistant,
Dual Watch, Roger Beep (+off), 106 mm H x 58 mm W x 30 mm D, keylock, spr/mic jack, baby monitor
Batts: 4AAA or Ni-MH Pack
Adamello - A Hoffer 3381 -
EXTERNAL PIC
(OR LOCAL)
http://www.cobraspa.it/inglese/prodottinew/ricetrans/adamellotu.htm
Bernina
EXTERNAL PIC
(OR LOCAL)
(2004) Wristwatch - a Ruidian RD-018
http://www.cobraspa.it/inglese/prodottinew/ricetrans/berninatu.htm
Cervino - A Kace Profitek -
EXTERNAL PIC
(OR LOCAL)
http://www.cobraspa.it/inglese/prodottinew/ricetrans/cervintu.htm
Everest - A Tsuen Shing WT-401 -
EXTERNAL PIC
(OR LOCAL)
http://www.cobraspa.it/inglese/prodottinew/ricetrans/everestu.htm
PB-1000
A Tti FRS-1000
(MRC-11X)
EXTERNAL PIC
(OR LOCAL)
scan,
5 call tones,
External ear/mic jack,
Auto power-save, Monitor, Channel lock, Digital volume control,
Belt clip
Batts: 4AAA
FRS version Nady MRC-11X FCC ID 'RMVFRS02'
Fun Pack - twinpack of Hoffer 3380
Fun Pack II - (CFG-100)
Fun Pack III
Fun Pack 2010
- contain pairs of Art ProTech TC-109
Fun Pack 40
(Fun Pack Basic?)
Fun Pack Profi - twinpack of Art ProTech TC-209
Fun Pack PMR 8 Basic - twinpack of Hoffer like the Binatone MR250
ComPro 446
EXTERNAL PIC (OR LOCAL)
a version of the Bowtech ComPro 446
see http://www.motocom.dk/default.asp?action=details&item=140
http://www.funktechnik-grenz.de/artikel/lpd/lpd.html
Pocket Comm Active
EXTERNAL PIC (OR
LOCAL)
(summer 2003). No CTCSS
Batts: 3AAA
A Tsuen Shing WT-431
manual : (PDF)
Pocket Comm Fun
EXTERNAL PIC (OR
LOCAL)
No CTCSS
Batts: 3AA
Looks like a basic version of their Profi
Pocket Comm Double
EXTERNAL PIC (OR
LOCAL)
Dual band version of their Pocket Comm One (LPD + PMR) - (TS WT-415)
60 x 170 x 30 mm
Batts: 4AAA
Pocket Comm One
EXTERNAL PIC (OR
LOCAL)
Batts: 4AAA
like the Tsuen Shing WT-415
Pocket Comm Profi
EXTERNAL PIC (OR
LOCAL)
SCAN, DW, LOCK, MONITOR, VOX, CTCSS & DCS
Batts: 3AA
Looks like a Midland 75-511 Speakeasy or F20 (FCC ID 'MMA75511')
Pocket Comm Radio
EXTERNAL PIC (OR
LOCAL)
with FM radio
Batts: 4AAA
like the Tsuen Shing WT-401
Pocket Comm Starter
EXTERNAL PIC (OR
LOCAL)
like the Tsuen Shing NLM-8
see http://www.rms.pt/danita_sp3380.htm
TC-109 (EXTERNAL PIC)
(OR LOCAL)
Art ProTech TC-109
see http://www.kkcentrum.sk/show_pic.php?pic=dan_dt109.jpg&prod=114
1380 (EXTERNAL PIC)
(OR LOCAL)
NO CTCSS, scan, call, 96x53x29mm
Batts: 4AAA (plug in charge 12V 100mA)
seen as Topcom Twintalker 1000
2388 (EXTERNAL PIC)
(OR LOCAL)
No CTCSS? (option), scan, Vox, Keypad Lock, Call, Soft Key Power On /Off, Monitor, 83x53x28 mm
Batts: 4 Ni-MH
Seen as Art ProTech TC-609
2888 (EXTERNAL PIC)
(OR LOCAL)
No CTCSS? scan, Vox, Keypad Lock, Call, Soft Key Power On /Off, Monitor, 83x53x28 mm
Batts: 4 Ni-MH
Seen as Topcom Twintalker 5000, Brondi FX-20
PMR-120
(EXTERNAL PIC)
(OR LOCAL)
Looks like a minitalk
PMR-200
(EXTERNAL PIC)
(OR LOCAL)
AlphaTalk
EXTERNAL PIC
(OR LOCAL) (2002)
Like the VC-901
Bingo
EXTERNAL PIC
(OR LOCAL)
A Tsuen Shing WT-548. Vox, hi/lo, beep
see http://www.dnt.de/dl/105/Bingo%20PMR-rgb.pdf
Comic 8
EXTERNAL PIC
(OR LOCAL) (2003)
A Maxon VK-25
DRS 1000 EXTERNAL PIC (OR
LOCAL) (2002)
A TTi FRS-1000 base station
http://www.neuner.de/dnt_drs1000.htm
try http://www.dnt.de (German)
DRS 2000
Same as the Doris 1000 ;o) but dualband with LPD 433MHz channels
HT8 XL
EXTERNAL PIC
(OR LOCAL)
(seen 2006) An HYT TC-2110
Miko
EXTERNAL PIC
(OR LOCAL)
(seen 2003)
A Victory Concept VC-904
see http://www.cbradio.cz/pmr/dnt.php3
Minipocket
EXTERNAL PIC
(OR LOCAL)
(spring 2004) mini (credit card size) 77ch dual-band 8 PMR + 69 LPD
38 CTCSS, scan, vox, 500 mW/10 mW, vibe, call, power save, auto-squelch, monitor,
key beeps, Roger Bleep, 122 x 55 x 18mm, 76g, headset socket, charger jack
Batts: Li-Ion rechg.
see dnt link
Also seen as SL-01D by KPO, Intek & Elix
Very similar to SayU Co. Ltd. (South Korea) / Daxian-Windsor (HK) WT-202 (FCC ID 'R3HWT202')
ProfiTek77
EXTERNAL PIC
(OR LOCAL)
new dualbander LPD/PMR - due late 2002
38 CTCSS (67,71.9-250.3) +off, S-meter (5 bars), vox, scan, tone scan, dual watch, baby monitor,
key lock, spkr/mic socket,
57 x 45 x 121 mm (without antenna, 290mm with), 135 gram, roger bleep (+off), power save,
sens -118dBm < 0.3µV (12dB SINAD),
hi/lo power on 446, 5 call tones, key bleeps (+off), good 1/4 wave antenna
Batts: 4AA or optional 1600 mAh NiMH pack
see http://www.thiecom.de/lpd/mt4000l.htm
manual http://www.cbradio.cz/doc/K-PO/PMR%20MT-4000L/manual.pdf
Seen as Intek/K-PO MT-4000L, Pan PI-4010 ( http://www.pan-international.de/PI_4010.pdf ), SHC 4000
Differing CTCSS tones may be stored per channel.
Dual watch - monitor 433.5 and 8/88 at the same time!
Sounds like a great DX radio, and is close to being my ideal 446.. BUT..
for general scanning, I wonder if
scanning all 77 channels (PMR+LPD) may be a bit slow and tedious?
Space 100
EXTERNAL PIC
(OR LOCAL)
a Hoffer 3381
Sport 8 (LOCAL)
same as Kace Profitek
Star 77
EXTERNAL PIC
(OR LOCAL)
(2003) A Maxon Star 77. Dualband with "High class metallic finish"
TouchCom (TC1)
EXTERNAL PIC (OR
LOCAL) (2002)
A TaeKwang FRS-310
http://www.neuner.de/dnttc1.htm
try http://www.dnt.de (German)
UHF 8 (LOCAL)
Re-badged EuroWave
UHF100
EXTERNAL PIC (OR LOCAL)
a TaeKwang UHF-70
see http://www.funktechnik.at/anmeldefrei/dnt_uhf100.html
WTR53
(LOCAL)
A Tsuen Shing WT-537
WT77
EXTERNAL PIC (OR
LOCAL)
A duo-band Tsuen Shing WT-405
WT8 is a sport pack pair of WT77
WT100
EXTERNAL PIC (OR
LOCAL)
38 CTCSS, scan, vox, beep, monitor, call, 120 x 42 x 18 mm
Batts: Li-Ion 3.7V / 729mAh
http://www.dnt.de/dl/104/WT100%20ProfiPack-rgb.pdf
Seen as Intek Microcom 446
WTR8
EXTERNAL PIC (OR
LOCAL)
A Tsuen Shing WT-405
XLP 77
EXTERNAL PIC (OR
LOCAL)
Dualband LPD/PMR (433/446) version of the XP8
38 CTCSS, Roger Beep, Lock, Vox, Scan (77ch in 16s), tone scan, Dual watch, power save,
55 x 27 x 170mm, 100g, sens -118dBm (12dB SINAD)
Batts: 4AAA
Also seen as MT-2000L by K-PO and Intek, Pan PI-2020 ( http://www.pan-international.de/PI_2020.pdf ), and Teletron
see http://www.neuner.de/xlp77.htm
& http://www.volny.cz/jendadasov/PMR/Intek.htm
Manufacture claimed by MAXTRYCOM of Korea ( http://www.ec21.com/co/w/worldcupbell/comp_info.html - http://www.maxtrycom.com/ ? )
XP8
EXTERNAL PIC (OR
LOCAL)
(singleband)
38 CTCSS (67,71.9-250.3) + OFF, Roger Beep, Lock, Vox, Scan, tone scan, Dual watch, power save,
55 x 27 x 170mm, 100g, sens -118dBm / 0.3uV (12dB SINAD)
Batts: 4AAA
see http://dnt.ci.to/cgi-bin/shop/shop/info?dntxlp,153943,150775
Manual http://www.thiecom.de/pdf/mt2000lanleitung-d.pdf
Seen as Intek MT-2000, SHC PR-2000, Albecom MT-2000
made by Maxtrycom? http://www.ec21.com/worldcupbell
Young 446
EXTERNAL PIC
(OR LOCAL) (2003)
A Tsuen Shing WT-441
Young Star
EXTERNAL PIC
(OR LOCAL)
A Hoffer 303
BM-35
baby monitor - an On-Real BM-35
PMR Easy
EXTERNAL PIC (OR
LOCAL)
Spotted Jan 2001. No CTCSS?
Batts: 4AAA
see http://www.audioline.de/telefone/pmreasy.htm
PMR Easy 005
EXTERNAL PIC (OR
LOCAL)
Spotted summer 2004
No CTCSS. Scan, Roger-Beep, monitor.
Batts: 3AAA
see http://www.shop.audioline.de/telefone/funk/pmr005.html
Also seen as Switel WT 101
PMR Easy 006
EXTERNAL PIC (OR
LOCAL)
A Victory VC-989
Spotted summer 2003, vox, scan, beeps
see http://www.audioline.de
PMR Easy 007
EXTERNAL PIC (OR
LOCAL)
Spotted summer 2002. sens -119dBm / 0.25uV (12dB SINAD)
Bleeps. 234g & 66 x 37 x 170mm
see http://www.audioline.de
An In Tech WT 007
Also seen as Natel Switel WT 007, Biloba 201
PMR Easy 008+
EXTERNAL PIC (OR
LOCAL)
Spotted summer 2002.
Same as BT Freeway
see http://www.audioline.de
PMR Easy 009+
EXTERNAL PIC (OR
LOCAL)
Spotted Spring 2003.
Same as NTL TWR301
see http://www.audioline.de
PMR Easy 010
EXTERNAL PIC (OR
LOCAL)
Spotted summer 2003.
Same as BT Freeways with FM radio - graphite with red/blue
see http://www.audioline.de
PMR Easy 011
EXTERNAL PIC (OR
LOCAL)
Spotted March 2004.
A Victory Concept VC-231
PMR Easy 012
EXTERNAL PIC (OR
LOCAL)
Spotted Sept 2004.
38 CTCSS (std) + off (0), scan, vox (3 levels), headset socket,
10 call tones, 16 volume levels, belt clips, changable covers, docking charger,
60 seconds time out, key lock, roger bleep +off, stopwatch, auto-off power save +off
Batts: 4AAA or packs
Manual http://www.thiecom2.de/ftp/audioline/012/pmreasy%20012.pdf
Seen as Switel WT 237. Australia: Oricom PMR1000R. UK: badged as Science Museum (Argos)
Power PMR20
EXTERNAL PIC (OR
LOCAL)
Spotted 2006.
38 CTCSS, vox, scan, beeps
PMR 500
EXTERNAL PIC (OR
LOCAL)
Blue. Mentioned at http://www.misco.co.uk - twin-pack £58 - no further details
bleeps, No CTCSS, 8 volume steps
Batts: 4AAA
From : http://www.argos.co.uk (search for two way radio)
£39 (#547/6024) pair:£70
PMR 510
EXTERNAL PIC (OR
LOCAL)
Blue. First seen: Summer 2003 (thanks Morten)
As 512 but WITHOUT CTCSS, timer, VOX
PMR 512
EXTERNAL PIC (OR
LOCAL)
Navy/Grey (?) or Lime. First seen: Summer 2003 (thanks Morten)
bleeps, 510 NO CTCSS, 512 38 CTCSS
auto shutdown, button lock, monitor function, scan mode (only scans channels, not CTCSS),
VOX, headset jack, optional button bleep, timer/stopwatch function, no Roger beeps, key tones,
LCD Back Light, Power saver,
130-140g incl. batts, 100 * 56 * 31mm, Rubber antenna 61mm, Optional accessory pack includes 2
rechargeable battery packs, twin handset charger, 2 headsets and 2 carry cases
Batts: 4AAA
FRS 3000
Re-badged Maxon RS446 / PMR-508 - (LOCAL)
see http://uk.doro.com/shop/productpage.asp?itemid=785&steps=1&tillbakaknapp=true
"This product is an approved variant of Maxon type PMR-508"
EU approved Nov 1999
http://www.eagletron.com.hk
FRS-129 EXTERNAL PIC (OR LOCAL) (2003)
not known if yet available to buy
see http://www.eagletron.com.hk/html/cat08.html
FRS-168
EXTERNAL PIC (OR
LOCAL) (2003)
Scan, Monitor, Paging
not known if yet available to buy
see http://www.eagletron.com.hk/html/cat10.html
Eittek Electronic Technology(HK) Co., LTD
http://www.eittek.com/walkie_talkie/walkie_talkie_en.htm
EK-0409
wristwatch like the Taejin 3821
EK-0410
wristwatch like the Trendy Blue TB5095
http://www.eittek.com/walkie_talkie/walkie_talkie_watch0410-en.htm
EK-0411
EXTERNAL PIC (OR
LOCAL)
wristwatch with scramble
38 CTCSS, scan, vox, dual watch, L :64, W :57, H :28
http://www.eittek.com/walkie_talkie/walkie_talkie_watch0411-en.htm
No website knowm, no information found yet.
WT02 - Hoffer 3380
WT05
EXTERNAL PIC (OR
LOCAL) (2004)
Wristwatch PMR - a Ruidian RD-018
http://www.elta.de/english/
(SOUND@VISION .. Accessories and specials)
Nice shower radio (Elta 3148) - with soap dispenser, I dread to think where from! Better not fall onto it :o)
9335
EXTERNAL PIC (OR
LOCAL) (2003)
A Hoffer?
EAN: 4001608093353
9336
EXTERNAL PIC (OR
LOCAL) (found Nov 2003)
38 CTCSS, LCD display with backlight, Squelch function, Incl. NiMH base charger, 60 x 150 x 35, 95g
Batts: 4AAA
EAN: 4001608093360
http://www.entel.co.uk
EURO-WAVE
EXTERNAL PIC (OR
LOCAL) (June 2000)
An Airtech Eurowave
a favourite in a test review by Practical Boatowner (Jan2001).
Source - manufacturer Airtech http://www.airtech21.com/english/cabinet2body.htm
£49 (ex VAT) price level. See www.hopevalleyradio.co.uk/eurowave.htm
EURO-COM PMR446 integrated radio headset
HT446
EXTERNAL PIC (OR
LOCAL) (2004)
Submersible, Scan, priority scan, Keypad lock, 125 x 57 x 32mm & 289g with battery and antenna
Batts: 1700mAh lithium-Ion pack - docking charge
from rswww.com
HT950
EXTERNAL PIC (OR
LOCAL)
Intrinsically Safe HT950, ATEX Approved, version of the HT446.
KF-100 EXTERNAL PIC (OR
LOCAL)
50(W) x 100(H) x 32(D) mm, 100g (without batts), 1st 1F 21.4MHz / 2nd 450kHz
Batts: 4AAA
see http://www.epctech.co.kr/viewproduct_18_e.html
from GENSOL INDUSTRIES CO., Korea, http://www.ec21.net/gensol ?
KF-310
EXTERNAL PIC (OR
LOCAL)
38 CTCSS (67,71.9-250.3) +off, bleep, vox (2 levels), monitor, scan (5 second resume after end of RX),
keylock, 3 call tones,
2.5mm stereo socket, Sensitivity : 0.22uV (12dB Sinad),
1st 1F 21.4MHz / 2nd 450kHz, 50(W) x 100(H) x 32(D) mm, 110g (without batts)
Batts: 4AAA
see http://www.epctech.co.kr/viewproduct_19_e.html
Mode button : CTCSS, lock, vox on/off, vox level, call tone. Long press starts scanning.
see manual : http://www.albrecht-online.de/service/PMR446/Tectalk-Freestyle/User-manual.pdf
http://albrecht-online.de/service/PMR446/Tectalk-Freestyle/Anleitung-DINA4.pdf (German)
Seen as Albrecht TecTalk FreeStyle (and MAG)
Samsung KF-310 available on Malaysian channels, FRS version Fanon Courier (FCC ID 'OIZKF-310',
applicant Wooil Telcom Co Ltd, 0.47W ERP)
exported by http://www.ec21.com/space2001 Ace World Trading Co., Ltd., Korea?
http://www.alibaba.com/company/10115513.html
PMR-0101-0
EXTERNAL PIC (OR
LOCAL) (2004)
Wristwatch PMR, scan, vox
FA-4652 (EXTERNAL PIC)
(OR LOCAL)
like the Elta 9336
"Flycom brand no longer exists. Flytalk is a trademark of Telcom, s.a." http://www.telcomsa.es/
FlyTalk Basic (a J-Com JSP-408H) (EXTERNAL Pic) (OR LOCAL)
FlyTalk Duo
(EXTERNAL Pic)
(OR LOCAL)
(EXTERNAL PACK Pic)
(OR LOCAL)
First noticed summer 2003
A Tsuen Shing WT-431
FlyTalk Look (TTI FreeQuency 122TX) (EXTERNAL Pic) (OR LOCAL) (2003)
FlyTalk Micro (Tti PMR-120TX)
FlyTalk Music (J-Com JSK-425FM) (EXTERNAL Pic) (OR LOCAL)
FlyTalk Slim (a Tti PMR-500-TX-Slimline)

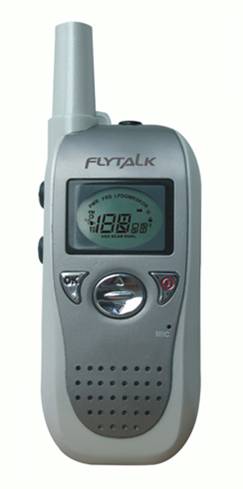

FlyTalk Smart
(EXTERNAL Pic)
(OR LOCAL)
A Tsuen Shing WT-546 + vibe, beep
FlyTalk SnowFM (a Tsuen Shing WT-401) (EXTERNAL Pic) (OR LOCAL)
FlyTalk tti Top (a tti FRS-1000)
FlyTalk tti TX-446 (a tti TX-446)
FlyTalk tti Watch (a tti PMR-200W) (EXTERNAL Pic) (OR LOCAL)
FlyTalk Twin (as SnowFM, less FM radio - a Tsuen Shing WT-405) (EXTERNAL Pic) (OR LOCAL)
PM1500XTM Sport (a J-Com PM1500XTM) (EXTERNAL Pic) (OR LOCAL)
The first J-Com JSP-408H we saw in the UK
35820 EXTERNAL PIC (OR LOCAL)
35830 EXTERNAL PIC (OR LOCAL)
35835 EXTERNAL PIC (OR LOCAL)
HK manufacturer http://www.golden-source.com
Parent company of Chinese co. Hoffer.
"OEM supplier for Bell Company in the States and well-known brands in Europe"
Fly Talk PMR200 FM
EXTERNAL PIC
(OR LOCAL)
noticed in 2002. Available in many colours!
38 CTCSS (67,71.9-250.3) + off, Scan, 8 call tones, Folding antenna,
87.5-108 broadcast FM - switches automatically from PMR to FM,
Double Conversion Superheterodyne (1st IF=21.4 MHz, 2nd IF=450 KHz), Sensitivity -120dBm / 0.22uV (12dB SINAD),
Audio Output 8 ohm / 100 mW, auto power off +disable
Size 58 x 102 x 26mm. 185g with batts.
Batts: 3AA
Also seen as Stabo Fly Talk
FRS-200 : FCC ID 'NDAGPFRS-200' (manual at FCC site)
???model???
EXTERNAL PIC
(OR LOCAL)
38 CTCSS, vox, FM radio
see (link)
http://www.nevadaradio.co.uk/acatalog/goodmans-gpmr102-pair.html
GPMR 114 "Tracker"
EXTERNAL PIC (OR
LOCAL)
This model was amongst the earliest 446 radios, and is no longer generally available.
GOOD : cheap £100 per pair or less, 38 CTCSS (67,71.9-250.3) +off, sockets( 3.5mm mono spkr, 2.5mm mono mic),
vox, recall, charger contacts on rear,
range checking gives a handy alert if the two sets move out of range,
useful for knowing if your kids are wandering off.
BAD : Bulky, toy-like (not black), 225g weight (ex batt), 110mm H, central PTT, no DCS, no scanning
Batt : 3AA / NiCd (40/25 hours)
See : Delboy review
See VIVANCO REVIEW, hints and tips
see https://www.angelfire.com/tx5/watcomm/docs/tracker.htm
Also seen as Binatone 100, Maas Multitalk, Jopix ARS, Busch X-300
..also seen slightly different as Ross Callfree, Vivanco FP200, Alecto FR-8
FRS version Unwired Technology UFR-308
EXTERNAL PIC (OR
LOCAL)
basic FRS version Golden Eagle Electronics GEE-413 FCC ID 'BFV4M-3-6-8' (see FCC site!) (140mW max!)
... so the 446 possibly the GEE-4M3 approved by ERO on 11-10-99
GPMR 116 (117=pair)
EXTERNAL PIC (OR
LOCAL) no more Tracking?
GOOD : cheap £90 per pair or less, scans, 38 CTCSS, all conns, vox
BAD : no DCS, no s-meter
Batt : 4AAA (30 hours)
From : http://www.argos.co.uk (search for mobile radio)
See : Delboy review
see : http://headline.co.kr (Also http://www.talkus.co.kr)
HL-109
(EXTERNAL PIC)
(OR LOCAL)
seen as Alan 421 - details there. No CTCSS
http://headline.co.kr/product/hl109.asp
HL-110
(EXTERNAL PIC)
(OR LOCAL)
seen as Alan 441 - details there. No CTCSS
http://headline.co.kr/product/hl110.asp
HL-112
(EXTERNAL PIC)
(OR LOCAL)
like the HL-110, but with 38 CTCSS
http://headline.co.kr/product/hl112.asp
HL-115
(EXTERNAL PIC)
(OR LOCAL)
seen as Alan 456 - details there
http://headline.co.kr/product/hl151.htm
HL-451
(EXTERNAL PIC)
(OR LOCAL)
seen as Alan 451 - details there
http://headline.co.kr/product/hl451.htm
???
EXTERNAL PIC
(OR LOCAL)
scan, Vox, call tone,
Batts: ?
Seen as Binatone MR250, Lexibook TW30Z, Commodore Fun Pack PMR 8 Basic
409MHz version is the 3509
Same socket details as 3320
100 EU
EXTERNAL PIC
(OR LOCAL)
38 CTCSS, Scrambler, vox, Baby monitor, Dual Watch, Stop Watch
Call Tone Melody (10 Songs),Automatic Power Off Timer Function
Key Tone, Key Lock, LCD Back Light Display, socket,
140 mm(H) x 56mm(W) x 36mm(D)
103
EXTERNAL PIC
(OR LOCAL)
38 CTCSS, scan, vox, dual watch, scramble
Batts: 3AAA
seen as FRS : XACT XFR102, Magnum PMR-2005, Master Bikini
303
EXTERNAL PIC
(OR LOCAL)
Only 3 channels : 1,4,7
No CTCSS, scan, or vox.
LED torch, bleeps, 50 x 85 x 25mm & 73g
Batts: 4AAA
seen as Stabo Freecomm 130, DNT Young Star
313
EXTERNAL PIC
(OR LOCAL)
no CTCSS, scan, keytones, LED torch, 123.6mm(H) x 54.9mm(W) x 38.0mm(D)
318
EXTERNAL PIC
(OR LOCAL)
No CTCSS, scan, Keytones, LED torch, 124.6mm(H) x 52.3mm(W) x 34mm(D)
323
EXTERNAL PIC
(OR LOCAL)
No CTCSS, scan, Keytones, LED torch, 113.5mm(H) x 54.4mm(W) x 34.8mm(D)
328
EXTERNAL PIC
(OR LOCAL)
No CTCSS, scan, Keytones, LED torch, 119mm(H) x 52.0mm(W) x 37.5mm(D)
505
EXTERNAL PIC
(OR LOCAL)
38 CTCSS (optional from manufacturer), scan, vox, jack, 107x59x29 mm, 139g with batts, sens 0.22µV for 20dB SINAD
Batts: 4AAA
Seen as Stabo Freecomm 220 (no CTCSS)
508
EXTERNAL PIC
(OR LOCAL)
38 CTCSS, scan, Dual Watch, Vox (3), call tone, monitor, Key LOCK, Auto squelch, key bleeps,
socket: 3.5mm stereo, 100 x 59 x 29mm, charge socket?, "Belt clip function" hehe
Batts: 4AAA
Seen as Team TeCom 508, Hotline HL 508,
Dikom HL-508
EXTERNAL PIC
(OR LOCAL)
Tchibo/TCM EXTERNAL PIC
(OR LOCAL)
409MHz version is the 3909
803
EXTERNAL PIC
(OR LOCAL)
38 CTCSS, scramble,
belt clip, 136 x 52 x 31 mm
No PMR version known of yet
808 (6608)
EXTERNAL PIC
(OR LOCAL)
38 CTCSS (std), vox, dual watch, scramble,
136 x 54.7 x 37.8 mm
Batts: 3AAA
Seen as Stabo Freecomm 450, Team ScramTalk 808, AEG Funky 60, Orchid PMR 808 (
http://www.orchid-electronics.com/pmr/pmr808.htm ), Tevion PMR 2005, Telecom 0100
Manual http://www.aeg-itm.de/Bilder/pdf/BDA%20Funky%2060%2030.07.04.pdf
2203
EXTERNAL PIC
(OR LOCAL)
38 CTCSS, scan, vox, scramble, Key Tone, Roger Tone, Dual Watch, Stop Watch,
Mosquito Repel, Vibration Alert, Call Tone Melody (10 songs), socket, 175.0mm (H) x 65.0mm (W) x 38.7mm (D)
Seen As Binatone Trek 100
(2202 version) EXTERNAL PIC (OR LOCAL)
3320 (503?)
EXTERNAL PIC
(OR LOCAL)
NO CTCSS (manufacturer can supply with 38). Scan,
Vox, monitor, keylock, dual watch, stopwatch, 60 x 100 x 32 mm, 138g with batts, 3.5mm headset socket (vox only, no PTT)
Batts: 4AAA
http://www.golden-source.com/product/gs3320.html
Manual (German, PDF) : http://www.pmr446.de/katalog/binatone/manual_dl.pdf
Seen as Binatone MR200, Alecto FR-22, Merion?, Lexibook TW30Y, Sencor SMR-200 EXTERNAL PIC (OR LOCAL), (JustTold/RIT Electronic Developments ?)
409MHz version is the 3109
Charger 6V DC, 200mA, 1.2VA; jack tip: +ve, barrel -ve (ring: no connection)
Headset: 3.5mm; tip=mic, ring=o/p
3330
EXTERNAL PIC
(OR LOCAL)
NO CTCSS, scan with lockouts, dual watch, vox, Call, Monitor, Key lock, dual Watch,
65 x 105 x 27 mm, 100g.
Batts: 4AAA
see : http://www.albrecht-online.de/pmr/joker.htm
http://www.golden-source.com/product/gs3330.html
manual : PDF
Seen as Albrecht Tectalk Joker
3350? 4650? (EXTERNAL PIC)
(OR LOCAL)
Stopwatch function, 60 x 150 x 35 mm, 95g
Batts: 4AAA (UM-4)
Seen as Hyundai F40TW, FIRST Austria TE-4650, Telco AL2 (EXTERNAL PIC) (OR LOCAL), Elta 9335, Profile PR-2900 ?
3380
EXTERNAL PIC
(OR LOCAL)
(EXTERNAL PIC)
(OR LOCAL)
Vox, Scan, Dual Watch, Baby monitor (vox), Headset socket, Digital volume control, Key lock,
"Size: 5.5 x 1.5 x 15.5 (cm)"
No CTCSS/DCS
Batts: 4AAA (charge socket 6V 100mA for NiMH - 6 hours)
http://www.golden-source.com/product/gs3380.html
http://www.cbradio.cz/pmr/hoffer.php3
Designed by http://www.idsmart-design.com.hk
Seen as Binatone MR300, Stabo 'Freecomm 200', Team McTalk, Danita SP-3380, Commodore Funpack (2), Busch Profi Talkie 2, MBO WT446, Hotline Stylie (blue), Dikom Stylie, Topcom Twintalker 2000, Megafon PMR2, Master Enjoy Elro WT02
Manual : http://tools.topcom.net/userguides/Twintalker%202000%20E.pdf
Mods http://home.foni.net/~michaelbosch/projects/freecomm/freecogb.htm
409MHz version is the 3309
FRS version Hoffer 505 : FCC ID 'C2JFRS1638' (Golden Source Electronics) (0.09W)
FRS version CHK FRS0017 : FCC ID (CHINA & HONGKONG TELECOM ENGINEERING COMPANY LTD) 'QTW-CHKTC' (18.8dBm / 0.08W ERP)
3 way mic/chg jack : middle (ring) for chg, tip for mic
3381
(EXTERNAL PIC)
(OR LOCAL)
a smarter restyle of the 3380
Seen as Team On-Air, Dnt Space 100, Cobra (spA) Adamello, Tevion?, Reer 6000, AEG Funkey 1 (& 50 set)
409MHz version is the 3609
(6808)
EXTERNAL PIC
(OR LOCAL)
NO CTCSS? vox, digital volume control, dual desktop charger pod, key lock, call tones
Batts: ?? (rechargeables)
(Number not yet known for PMR version)
Seen as Binatone MR-650
HL 508 (EXTERNAL PIC)
(OR LOCAL)
A Hoffer 508
see (webpage)
PMR-446 (EXTERNAL PIC)
Silver or green version of the Maycom OH-446
see (webpage)
Stylie (EXTERNAL PIC)
(OR LOCAL)
A blue version of the Hoffer 3380
see (webpage)
TC1688
EXTERNAL PIC (OR
LOCAL)
TIME-OUT TIMER(TOT), 38 CTCSS, Channel/CTCSS Scan, VOX, External Speaker & MIC Jack,
Keypad Lock, Battery Save, Low Battery Warning,
Out of Range warning, 5 Different Call tones, sens 0.25uV,
54 x 113 x 30 mm, 158g with batts
Batts: 3AA
Seen as Stabo Freecomm 550
TC-2110
EXTERNAL PIC (OR
LOCAL)
Business PMR446 Radio, spotted june 2004.
38 CTCSS, 83 'CDCSS' (DCS), Channel Scan, Priority Scan, Time-out timer, busy channel lockout,
PC cloning or radio-radio cloning, 16 memory channels, 110.5 x 56.3 x 37.2 mm, 285g (batt + belt clip),
bandwidth 8.5kHz with 2.5kHz dev., sens 0.35uV, MIL-STD-810C/D/E
Batts: Li-Ion 7.2V 1250 mAh
see http://www.hyt.com.cn/en/03products/open2110.htm
Seen as DNT HT8 XL
TC-3000
EXTERNAL PIC (OR
LOCAL)
Spotted june 2004. Business radio being sold programmed as PMR446
TC-366
EXTERNAL PIC (OR
LOCAL)
TIME-OUT TIMER(TOT), 38 CTCSS, 61 DCS, MIL-STD 810C/D/E, 16 channels,
Busy channel lockout, Squelch tail elemination,
Scan, monitor, Battery Save, Low Battery Warning, 5 Different Call tones, sens 0.25uV
Batts: Custom 7.2V pack
see http://www.hyt.com.cn/en/03products/open366.htm
Seen as Stabo Freetalk Pro
manuals http://www.icom.co.jp/world/products/land_mobile/index.htm
F4SR-446
EXTERNAL PIC (OR
LOCAL)
Older 'pro' design (EU approved June 1999), no longer available
IC-4088SR EXTERNAL PIC
(OR LOCAL) (late 2002)
WITH ANTENNA : EXTERNAL PIC
(OR LOCAL)
IN HAND : EXTERNAL PIC
(OR LOCAL)
SHORT ANT : EXTERNAL PIC
(OR LOCAL)
replaces the IC-446S
some had a 1/4 wave antenna, newer ones have shorter antenna?
external power/charge socket, Simple voice scrambler (1 mode),
Improved low power consumption circuit, Large LCD, Improved key ergonomics,
Time-out-timer (+off), Auto power off (+off?), JIS-4 level water resistance,
38 CTCSS (67,71.9-250.3) +off, Scan (timed or pause), no vox, key beeps (+off), key lock,
'Smart-ring' (acknowledgement), 10 ring tones 'Call-ring', in-range transponder,
55.5 x 102.5 x 26.5 mm, 180g, optional speaker mic with channel change! (3.5mm mono spkr, 2.5mm stereo mic)
Batts: 3AA or custom NiCad pack
IC-4088A Manual (FRS) : http://www.icomamerica.com/support/manuals/IC-4088A.pdf
4088E is the 433MHz LPD. 477MHz Aus CB version is 4088S.
see http://www.elixcom.sk/ic-4088_en.php
Some sensitivity ratings of 0.158µV typical (12dB SINAD) which is -123dBm, others say 0.2uV / -14dBuV which is -121dBm - either of these is still excellent - one of the best.
Some reports of muddy audio?
FCC ID AFJ262700 : testing reports 488mW conducted power, 259mW ERP - so even a 1/4 antenna has -2.75dB gain
IC-446S
EXTERNAL PIC
(OR LOCAL)
(summer 2000) EU approved Feb 2000
Same style as the 433MHz LPD IC-4008E. 180g, 102mm H
GOOD : £100 price level, 38 CTCSS (67,71.9-250.3), Retractable antenna, range tracking, call, "smart ring",
water resist, PTT hold, good audio and sensitivity (-119dBm for 12dB SINAD)
BAD : no DCS, manual scan
Batt : 3AA rechg (60 hours)
See : http://www.icomuk.co.uk/ ... new products
Review : http://www.delboyenterprises.co.uk/446_2002/icom_ic446s.htm
As well as the 10mW 433MHz 4008E and the FRS 4008A model, Icom make a version of this for the US Military
(Intra-Squad Radios) after having won the contract in 2000 to supply more than 13,000 units.
The radios feature 14 channels ranging from 396.875 in order up to 399.975 MHz (no fixed steps),
12.5kHz FM, < 500mW.
"The IC-4008M has a cast aluminum case, is rated JIS-5 for water resistance and is MILSPEC 810C, D and E compliant.
It supports 38 CTCSS tones and runs on three AA's or a $10.88 nicad pack."
Details : http://www.ld.com/cbd/archive/2000/02(February)/29-Feb-2000/58sol003.htm
There is also an Australian 477MHz CB version, the IC-40jr
IC-F22SR (446)
EXTERNAL PIC (OR
LOCAL)
CTCSS/DCS, 7.2V DC, Current drain Tx High (0.5W ERP) 0.6A (approx.),
Rx Rated audio 250mA, Operating temperature range -25°C to +55°C,
Dimensions (proj. not included) 54(W)×128(H)×37(D)mm,
Weight (with BP-222) 317g,
External mic. connector 3-conductor 2.5mm,
Audio output power (at 7.2V DC) 500mW typical at 5% distortion with an 8Ohm load,
External speaker connector: 2-conductor 3.5mm
see http://www.ears.plc.uk/wtlf.htm
IC-F25SR (446)
EXTERNAL PIC (OR
LOCAL)
2006 replacement for the F22SR
50 CTCSS (+off) / 84 DCS (+off) - supplied default channels use CTCSS only but DCS is available, tone/code scan,
Scan (one of the 16 positions on the rotary selector scans the programmed channels), Monitor,
Optional Voice scrambler (32 or 255 code units), "Smart ringer" range-check,
Speaker-microphone jack (2.5/3.5mm), Current : TX 0.4A (0.5W ERP) : RX: 300 mA (500mW AF max.) : 75 mA (stand-by),
Sensitivity 26.5dBµV/m (at 20dB SINAD)
,
53 x 195 x 38 mm, 300g, 3 minute TX time out, no vox.
Batts: 7.2V DC 2000mAh large capacity Lithium-Ion (6AAA case available)
Manual http://www.radcom.com.es/cataleg/icom/pdf/icf25sr_m.pdf
The IC-R2 scanner is one of the first very small well regarded scanners that covers PMR446 channels correctly with 6.25kHz steps (bandwidth still not right though). Scan/search speed at 10 steps a second isn't great but usable. A radio amateur version called the Q7E will allow transmit at less than 500mW levels on 145 and 433MHz, at the expense of HF and the number of memories - this means you can scan away wherever you are and if asked about it... it's innocent - "It's an amateur radio walkie-talkie, Officer!". The USA version, the Q7A starts looking interesting for PMR446, as their amateur band goes up to 450MHz. The bandwidth may be wrong, but I'm sure some people wouldn't hesitate to use it. Default tuning steps will be different though, we prefer 12.5kHz over here - and the American cell-phone bands at 800MHz are blocked. This 3-in-1 could suit many people, scanner with ham radio and PMR446 available if really needed - if you can import one or persuade your dealer that you travel to the states often and need the extra coverage. The ultimate for some people would be a Q7E with a full transmit coverage modification as detailed at http://www.mods.dk - which seems very daunting to an electronics novice! - can be supplied by dealers if you know where to ask nicely, according to some recent mailing list postings ...
... IC-Q7E
EXTERNAL PIC (OR
LOCAL)
30-1300MHz FM/AM/FMW scanner, extendable transmit from 70cm to 470MHz (and 136-174MHz).
6.25kHz steps for precise 446 channels. Scans all 8 channels per second. Selectivity quite good.
Roughly 200mW output reported, some 3dB down (half an S-point). Can be reset with certain keys held at power-up.
With a shorter antenna it could certainly pass for a 446 radio.
Good: 50 CTCSS, black, S-meter, frequency display :o)
Bad : often needs two hands for the stupidly difficult to use and press function key
and the PTT needs force too. SMA antenna connector, single 3.5mm speaker mic socket (4 way - hard to find
leads - try SL4 at http://www.eastlondoncommunications.co.uk/smcurlies.htm )
Batts: 2AA (no power or charge sockets at all)
A promising jack-of-all-trades (but master of none). See NOTE at top of page
See Q7 COMMENTS
DX-446
EXTERNAL PIC (OR
LOCAL)
Same as Team PT-3508
i-Talk T20
(LOCAL)
wristwatch like Trendy Blue TB5095
HM-446 - a badged Maycom MH-446
MicroCom 446 EXTERNAL PIC
(OR LOCAL)
Same as DNT WT100
MiniCom Duo EXTERNAL PIC
(OR LOCAL)
A Tsuen Shing WT-441
MT-2000L EXTERNAL PIC
(OR LOCAL)
same as the DNT XLP77
The MT-2000 is single band, like the DNT XP8
MT-2020 EXTERNAL PIC
(OR LOCAL) 2004
2020P is PMR only, 2020D is dualband with LPD (via internal jumper)
38 CTCSS, hi/lo power, dual watch, vox (2 levels), roger bleep, key beeps,
key lock, 3 call tones, spkr/mic/chg socket, 100 (excl ant.) x 55 x 31 mm & 100g (excl batts)
Apparently it's an SL-01D within, and very sensitive
MT-4000L
Same as DNT ProfiTek77
MT-4040 EXTERNAL PIC
(OR LOCAL) 2004
4040P is PMR only, 4040D is dualband with LPD (via internal jumper)
38 CTCSS, up to 2W
MT-446
EXTERNAL PIC (OR
LOCAL)
same as Team PT3208S
PB-1000
A TTi FRS-1000
The PB-1000L is dual band
PMR-303S
(LOCAL)
A Maycom OH/EH-446
PMR 800C (LOCAL)
(Italy) A Tekcom (like PJ-117)
was at http://www.intek-com.it/catalogo/pag50.html
RP-436
same as Maycom Voice Pager
see http://www.elettronicagm.com/catalogo/catlpdpmr/rp436.jpg
Scout 08
(LOCAL)
A Tsuen Shing WT-537
Scout 77
A Maxon Star 77 (LPD/PMR)
Scout XP
A Maxon VK-25
SL-01D
Same as DNT Minipocket
SportTek Plus
EXTERNAL PIC (OR
LOCAL)
UHF100
a TaeKwang UHF-70
1500
EXTERNAL PIC (OR
LOCAL)
Spotted summer 2005.
A Victory Concept VC-231
Freetalker
EXTERNAL PIC (OR
LOCAL)
wristwatch - a Trendy Blue TB5095
Planet EXTERNAL PIC (OR LOCAL)
Willy - an Aztech PMR 3000 R
XR-007 Exloror - like the Superb Sound Products XR-007
Many models also claimed by BSInternational, Korea http://www.ec21.com/nfit
JDG-415NX
EXTERNAL PIC (OR
LOCAL)
Black body, distinctive round silver intrusion from side around display and controls
GOOD: 38 CTCSS (67,71.9-250.3), drop-in charging, freq. display, dual watch, scan, CTCSS off,
VOX, RSSI Received signal strength indicator, socket (2.5mm stereo, spkr/mic),
sens < -121dBm (12dB SINAD)
BAD : no memories
Batts: 4AAA - 35 Hours (5:5:90 Tx:Rx:Standby)
seen as @active (see for reviews), Stabo Freecomm 500
FRS version : FCC ID 'OAJJDF-414-EU-HU' (415-like in appearance)
JDP-408H
EXTERNAL PIC (OR
LOCAL)
EU approved Dec 1999
Black or coloured body, silver speaker grill area at top
38 CTCSS, Vox, Power save, sens < -121dBm (12dB SINAD)
seen as Albrecht TecTalk (and an FM version), Stabo Freecomm 500
FRS/GMRS versions JDF-408H
FRS version seen as Coleman CR411.
CR411 review said "Uncontrollable musical call tones, Poor receiver, Weak construction, Very confusing to learn and operate, Low speaker volume. 390mW ERP" ( http://www.gmrsweb.com/gmrscoleman411.html )
JDP-414H
EXTERNAL PIC (OR
LOCAL)
Metallic with black center area
38 CTCSS, Vox, Power save, sens < -121dBm (12dB SINAD)
seen as Audiovox PMRS 838, Stabo Freecomm 500, Kombix Silver
FRS version JDF-414H
seen as Abe (In Tech Electronics) FRS-4012
( http://www.abe-hk.com/products/frs.htm )
JGF-2002N
EXTERNAL PIC (OR
LOCAL)
With GPS! Scans, vox
38 CTCSS (67,71.9-250.3) + off
Batts: 4AA
seen as Albrecht GP One
claimed by SL enterprise http://www.ec21.com/sl
JP-401EX
EXTERNAL PIC (OR
LOCAL)
Very plain. Channel programming via Dip switches, External Speaker / Microphone output,
Auto power save, Auto squelch, LED indicator, Size:100(H)x52(W)x24(D)mm, 120g with Battery,
Scans, no monitor button, no CTCSS/DCS, no Vox, sens < -121dBm (12dB SINAD)
Batts: 4AAA (30 hours @ Tx:5,Rx:5,Standby:90)
seen as Stabo Freecomm 300, President TXMS-300
LPD version JL-401EX
FCC ID 'OAJJF414-401EU' (http://www.fcc.gov/oet/fccid)
JSK-425FM
EXTERNAL PIC (OR
LOCAL)
Metallic finish. Like the JSP-408H, but with FM radio
Batts: 4AAA
seen as Flycom FlyTalk Music
FRS version FR1538 : FCC ID 'OAJFR1538' (much info at FCC site)
JSP-408H
EXTERNAL PIC (OR
LOCAL)
Black, coloured, or metallic body.
38 CTCSS, vox, 7 ring tones, 110g, 49 x 94 x 24 mm, sens < -121dBm (12dB SINAD)
Batts: 4AAA
seen as Multicomm Jnr, Freewave, Lafayette Star-446, Flycom FlyTalk Basic
FRS version JSF-414H
PM1500XTM
EXTERNAL PIC (OR
LOCAL)
Large LCD display, VOX, scan, digital compass, FM radio, stopwatch/alarm, Vibe alert,
Water-resistant - rain proof, 38 CTCSS, 62 mm x H 185 mm x T 32 mm, 196 g with batts,
sens < -121dBm (12dB SINAD)
Batts: 4AAA
seen as Flycomm PM1500XTM Sport, Cable & Wireless TWR 1001, Stabo 'Outdoor'
FRS version FR1500XTM, seen as Audiovox FR1500XTM http://electronicsemall.com/audfrtwowspo.html
FCC ID 'OAJFR1500XTM' (manual at FCC site)
Jopix 446 - like the Albrecht Tectalk Contact
Jopix ARS - like the Goodmans 114 EXTERNAL PIC (OR LOCAL)
Jopix Blue - a Tsuen Shing NLM-8 EXTERNAL PIC
Also from Global Link technology? http://www.gl-technology.com.tw/E_RADIOS_PMR.htm - models GPM - 080 and GPM - 081
PMR (radio #1) EXTERNAL PIC
(OR LOCAL)
Very basic features - one channel at a time (DIP switches inside), hi/lo power, charge terminals
Batts: 4AAA
Profitek EXTERNAL PIC
(OR LOCAL)
Vox, 38 CTCSS, scan, charger terminals, beeps, dual watch
Batts: 3AA
Also seen as DNT Sport 8, Acumen KTX-800, Cobra (SpA) Cervino
FRS Version : G.E. Sedonia (GE 35873)
Also rather similar to the FRS KTR-460 (TTI) http://tti.koreasme.com/viewproduct_1_e.html
Rumour has it that the Visual Communicator VC-H1 will be launched with an integrated PMR446. Bad news for the service IMHO - do we really want a load of digital noise hogging channels?
TK-361 T2
EXTERNAL PIC (OR
LOCAL)
Pro-style; very basic features - No batt level indicator
TK-3101
EXTERNAL PIC (OR
LOCAL)
EU approved May 1999
38 CTCSS (67,71.9-250.3) +off (from Taiwanese http://www.greatking.com.tw/products/frs/help/help3101.htm )
15 channels programmed by PC, 58 x 125.5 x 32 mm, 330g (with batt KNB-14)
http://www.kenwood-electronics.fr/pages/produits/telecom/tk-3101e.html
TK-3201
EXTERNAL PIC (OR
LOCAL)
replaces TK-3101, 2004. GBP169 price level.
26 CTCSS, 12 DCS, scan, vox, keylock,
16 memory channels, programmed by PC, Tough and Water-resistant IP54/55 and MIL-STD 810 C/D/E/F,
channel recognition using speech synthesis,
Voice Inversion Scrambler, Time Out Timer, Low Battery Warning, Rapid Charger,
54 x 122 x 33 mm & 363g with KNB-29N
Batts: custom pack: KNB-29N 1600mAh NiMH
http://www.airsys.co.uk/kenwood/tk3201.htm
UBZ-LJ8 (Funkey 446)
EXTERNAL PIC (OR
LOCAL)
A consumer 446 from Kenwood at last, early 2003. Black, yellow, silver.
(no FRS version?)
38 CTCSS (67,71.9-250.3) +off, vox, folding antenna, scrambler, limited to 3 minute overs max (bad for gateways),
limited scan facilities, no tone scan, 114x58x30mm, 180g (with AA batts)
Batts: 3AA or rechargeable packs
review : http://www.delboyenterprises.co.uk/446_2003/kenwood_ubz.htm
website : http://www.funkey446.com
Manual : http://www.funkey446.com/images/pdfs/manual-488k.pdf
seen at http://www.orbito.com/kenwood_tk-3101FR.htm
and http://www.candlinternational.uk.com/Licence%20Free.html
K-2003-3
EXTERNAL PIC
(OR LOCAL)
Not known if on sale. 59 x 34 x 105 mm
Batts: 3AA
Air - a Tsuen Shing WT-417
EXTERNAL PIC
(OR LOCAL)
Spring 2003
Flash - a Tsuen Shing WT-415 EXTERNAL PIC (OR LOCAL)
PMR-8 - a Chief Tek C446 EXTERNAL PIC (OR LOCAL)
Rocky - an Art ProTech TC-109 EXTERNAL PIC (OR LOCAL)
Silver - a J-com JDP-414H EXTERNAL PIC (OR LOCAL)
PB-1000R
EXTERNAL PIC (OR
LOCAL)
Base station
A TTi FRS-1000
PMR-201 FQ
EXTERNAL PIC (OR
LOCAL)
2003
A TTi FreeQuency PMR-201 TX
see http://www.cbshop.com/k-po_PMR201.htm
review http://www.446user.co.uk/review_index_all.html
MT-2000L
EXTERNAL PIC (OR
LOCAL)
"A brand new dualbander with 8 PMR channels and 69 LPD channels.
CTCSS Tone Selection, 38 Private Channels, Adjustable Transmitter Output Power (for PMR only),
Vox / Baby Room Monitor, DW Dual Watch, Program Tone, RB Roger Beep Tone, Call Tone ( 5 different Ringer
Tones Available, Auto Scan, Lock, RSSI ( Received Signal Strength Indicator), LCD Display, Power Save,
Keyboard Lock, Battery Status Indicator, TX/RX led, Monitor.
This dualbander is also available in a special export version with some extras."
same as DNT XLP 77
MT-4000L
EXTERNAL PIC (OR
LOCAL)
same as DNT ProfiTek77
SL-01D
EXTERNAL PIC (OR
LOCAL)
Same as DNT Minipocket
DC-448
EXTERNAL PIC (OR
LOCAL)
Black finish
a J-Com JSP-408H
Duetto
EXTERNAL PIC (OR
LOCAL)
First seen May 2003. A Chief Tek C446
see http://www.marcucci.it/english/prodotti/schede/scheda.asp?ID=10930
Elite EXTERNAL PIC (OR
LOCAL)
see http://www.marcucci.it/images/cataloghi/pdf/Lpd_pmr446.pdf
http://www.marcucci.it/english/prodotti/schede/scheda.asp?ID=7447
a Tekcom TP-398
Solution
a Tsuen Shing WT-431
Star-446
EXTERNAL PIC (OR
LOCAL)
Metallic finish
a J-Com JSP-408H
TW30Y
A Hoffer 3320
Found by Ugo Petrus, summer 2004 - thanks!
TW30Z
A Hoffer
PMR 2000
EXTERNAL PIC (OR
LOCAL)
38 CTCSS, scan, power save, vox, stopwatch
Batts: 4AAA (15h)
Also seen as Aztech PMR 3000 http://www.aztech.com/pmr3000.htm
PMR 4000 EXTERNAL PIC (OR LOCAL)
See Aztech PMR 3000R
PMR 5000 EXTERNAL PIC (OR LOCAL)
See Aztech PMR 5000
Navigator
EXTERNAL PIC (OR
LOCAL)
Comimg soon...
Digital compass
Urbangator
EXTERNAL PIC (OR
LOCAL)
Comimg soon...
Digital compass
FX40 Plus
EXTERNAL PIC (OR
LOCAL)
Summer 2003. An Art ProTech TC-309
FX200
(
LOCAL)
FX500
EXTERNAL PIC (OR
LOCAL)
Spider 500
EXTERNAL PIC (OR
LOCAL)
Bleeps. CTCSS
Batts: 3AA
an Art ProTech TC-107
Spider 700
EXTERNAL PIC (OR
LOCAL)
Bleeps. No CTCSS?
Batts: 3AA
an Art ProTech TC-109
Multi-talk
EXTERNAL PIC (OR
LOCAL)
Black version of the Goodmans GPMR114
See : http://neuner.de/multitalk.htm
manual : http://www.pmr446.de/katalog/maas/multitalk446.pdf
See VIVANCO REVIEW, hints and tips
PMR-2004
(
LOCAL)
nothing found on www
Small, 3 buttons under semi-circular (arched) display, antenna
on right, dotted spkr grill lower right.
PMR-2005
A Hoffer 103, blue or black (thanks Arthur)
seen here http://www.mallteam.it/catalogo.asp?scat=8&cat=425
Bikini (Hoffer 103), Derby, Enjoy (Hoffer 3380), Smile (Atlinks 35820)
U.S. FRS versions : Topaz
M-222P
EXTERNAL PIC (OR
LOCAL)
Found online jul 2003. Red, blue, yellow, grey, black
38 CTCSS, vox (3 levels), headset/mic sockets, intercom
Batts: 3AA
Seen as Albrecht Tectalk Action
FRS: Midland M-222P, FCC ID 'MMAGM222' (manual at FCC site)
MT-700
EXTERNAL PIC (OR
LOCAL)
Found online jul 2003
38 CTCSS, (scan & vibe-alert available as manufacturer's options),
Vox, Dual Watch (NO mem channels), Baby monitor, key beeps, roger bleep, key lock
sens -118dBm / 0.28uV (12dB SINAD), 153 x 63 x 40 mm & 96g
Batts: 4AAA
Also seen as Cobra MT700
Manual : http://www.walkie-talkie-radio.co.uk/stuff/cobra/mt700-manual.pdf
PMR 508 - (LOCAL)
The original name for the RS446 it would seem. EU approved Feb 2000
38 CTCSS (67,71.9-250.3) (NOT only to 192.8 as stated in the manual!), 3.5mm stereo socket
(tip mic, mid spkr, gnd)
Batts: 4AAA
Info : http://www.maxon.co.kr/english/product/portable/frs/pmr_508.html
http://www.cbradio.cz/doc/Maxon/PMR%20RS466/
See ROB'S REVIEW
Speaker mic details :
http://www.the-isg.co.uk/practical-airsoft/speaker-mike-mod-player.html
USA FRS version: Topaz TruTalk TK-14
see http://www.swscommunications.com/topfam.htm
Spec sheet (PDF) http://www.topaz3.com/files/specshts/consumer/TK14specsheet.pdf
FCC ID 'F3JTK14' (FCC site has manual)
"Approved variants: Maxon types FRS-508, ECLIPSE, EAGLE, SKYLARK, TALKBACK, EASYTALK 2000 and RS446"
Also seen as Maxon RS446, Telcom TW1000, Audioline FRS 3000
£45 from : http://www.cartel.co.uk/itmidx1.htm
With Cartel logo :
EXTERNAL PIC (OR
LOCAL)
"quite small and light ... support power saving ... simple controls
...you can turn CTCSS off ... support channel scan and tone scan ...
useful for CB like communications ... channel scan to scan for activity, then you can listen in
on tone 0, use tone scan to find the tone ... they look and feel cheaply made ...
only problem I have found with them is that the mic isn't very sensitive. To get good modulation you
have to hold the mic about 4 cm from your mouth.
The batteries don't seem to last very long, but this is a compromise with being small (AAA batteries).
... overall I am pleased with my purchase of the Telcoms."
"I tested a Telcom and a Handie Pro with a field strength meter, and the Handie Pro registered twice the ERP of the Telcom." - could cost you 3dB then (half an S-point, wow).
RS446
EXTERNAL PIC (OR
LOCAL)
Found online aug 2000. EU approved Feb 2000
"This product is an approved variant of Maxon type PMR-508"
See http://www.commcomms.co.uk/pmr446.html
SL25
EXTERNAL PIC (OR
LOCAL)
Early model EU approved Feb 1999
Very basic but rugged - No batt level indicator
Re-programmable, and can be tweaked up to 2W (so rumour has it)
Very good range - efficient antenna.
Also seen as Team Professional 446
SL-20 approved Mar 2000
Star 77
EXTERNAL PIC
(OR LOCAL)
38 CTCSS, PMR/LPD (77ch), VOX (3 levels), SCAN, CTCSS scan, 8 call tones, power save, auto squelch, monitor, headset jack,
Charging jack, 50 x 26 x 130 mm, key lock
Batts: 3AAA
Seen as DNT Star 77, Intek Scout 77, Aircom Scout 77
VK-77 is FRS?
VK-25
EXTERNAL PIC (OR
LOCAL)
Found online jul 2003
38 CTCSS, scan, vox (3 levels), beep (+off), headset/mic sockets
manual http://www.maxon.co.kr/uploads/productreport/vk-25%2020OM.pdf
seen as DNT Comic 8, Intek Scout XP, Aircom Scout XP
MH-446
EXTERNAL PIC (OR
LOCAL)
GOOD: vibe-alert, no roger bleep, baby monitor, cloning, scanning, tone scan, dual watch, full 500mW ERP,
freq display
BAD : short batt life, no charging indicator, poor batt level indication, 32 CTCSS 52 DCS
58 (W) - 103 (H) - 26.5 (D) mm , Weight 129g (W/O Battery)
Batts: 5AAA (!) or 6AAA NiMH pack (10 hours?)
£175 price level
http://www.maycomcoltd.co.kr/pro_mh446.htm says:
CTCSS : 32 as per MPT 1306(For UK). 47 for other European Countries
DCS : 52 as per MPT 1381. 84 for other European Countries
Please refer to the main page regarding
MPT 1306 (http://www.radio.gov.uk/publication/mpt/mpt_pdf/mpt1306.pdf) and
its 32 tone specification. Whether the UK MPT 1306 spec. actually
applies to PMR446 is doubtful as any Euro-approved PMR446 sets may be used in the UK.
Manual for Ecom/Atex Ex-PMR 500 intrinsically safe version : http://www.extronics.com/images/pdf/PMR%20500%20manual.pdf
U.S. FRS version : FRS-465 : FCC ID Maycom Co Ltd 'N6MEH-465' or Wireless Marketing Corporation 'MGPFR-465P1'
Also seen as A2E (& Intek) HM-446, Commtel Com446, Stabo FreeTalk UHF, Zodiac FreeTalk
OH-446 / EH-446
EXTERNAL PIC (OR
LOCAL)
OH and EH look the same.. EH replaces the older OH perhaps?
Vox, Scans, 38 CTCSS, 55x83,2x26 mm, 134g (115g without battery),
sens -119dBm (12dB SINAD)
Batts: 4AA
Seen on Maycom website, not known if available in UK.
Also seen as Intek PMR-303S, Zodiac SuperTalk 446, Hotline PMR-246 (with DCS http://www.es-sa.ch/factory/fr/p_14.html ), as FRS model PRO-301 from Nemo21 http://www.ec21.com/nemo21
FRS Maycom EH-465 : FCC ID (Nemo21 Information & Communications, Korea) 'O7MPRO-301' (250mW ERP. Manual at FCC site)
Voice Pager
EXTERNAL PIC (OR
LOCAL)
Batts: 2AAA
Seen on Maycom website, not known if available in UK.
Also seen as Intek RP-436, Stabo Voice Pager
WT-446
EXTERNAL PIC (OR
LOCAL)
(Spotted 2003)
a Hoffer 3380
WT-500
EXTERNAL PIC (OR
LOCAL)
(Spotted 2004) 38 CTCSS, scan, monitor
Batts: 3AA
Believed to be based upon Motorola T54xx/T56XX/T57XX, with the same +/menu test mode.
PMR 1 - nothing known
PMR 2 - Hoffer 3380
PMR 3
EXTERNAL PIC (OR
LOCAL)
or Orange
EXTERNAL PIC (OR
LOCAL)
(Spotted 2004)
38 CTCSS, vox, stopwatch, 60 x 160 x 30 mm
PM 4800
EXTERNAL PIC (OR
LOCAL)
38 CTCSS, vox
Batts: 3AA
http://www.cybex.cz/Produkt.aspx?Shortcut=MCC-42085
Looks similar to On-Real FX-60
PM 4900
EXTERNAL PIC (OR
LOCAL)
38 CTCSS, vox
Batts: 3AA
http://www.cybex.cz/Produkt.aspx?Shortcut=MCC-42086
Freetalk 46/WT-246
EXTERNAL PIC (OR
LOCAL)
See : http://www.neuner.de/me_sonder.htm
(Spotted 2002) 165mm x 58mm x 35mm, 110g
Batts: 4AAA
seems same as Binatone MR500
MT988
EXTERNAL PIC (OR
LOCAL)
(Spotted 2004) very like a Motorola!
38 CTCSS (std) +off, scan, vox, Key Tone selectable, Lowr Battery Warning,
Selectable Tone Alerts, Digital Volume Control, Talk Confirmation, Power Save Mode,
Keypad Lock, Monitor
Sensitivity : 0.33uV@12dB SINAD, Squelch Sensitivity : 0.25uV Typical
Batts: 4AAA
T-9071
Looks exactly the same as the MT988
www.microlab.com.cn/en/ products/two%20ray%20divo/T-9701.htm
FCC ID 'SCUMICROLABT-9701' (164mW -22dBm)
T-9751
Looks like a Kenwood TK-3101!
Headset sockets tend to be stereo 2.5mm, but needing a jack 2mm longer than usual. Tip spkr, mid mic, gnd.
See notes at the end of this section regarding companding and TX time-outs.
Adventure / Classic / Princess
EXTERNAL PIC (OR
LOCAL)
Radios for kids (2002), Disney style, literally Mickey Mouse!
Adventure : White/green + red antenna (Buzz Lightyear, Aliens, Mike, Stitch and Morph)
Classic : Red/orange + black antenna (Minnie, Goofy, Donald and Daisy)
Princess : Pink and mauve/blue (Cinderella, Snow White, Sleeping Beauty, Belle and Ariel)
38 CTCSS, Disney Sample call tones (http://www.motorola.com/mdirect/disney/rings/2way/TCT_3_classic.wav says it all!)
batts: 4AAA
£50 per pair price level
see http://www.motorola.com/radios/disney
FRS : FCC ID 'K7GD54XX' Giant Electronics Ltd.
CLS 446
EXTERNAL PIC (OR
LOCAL)
Late 2003. Clear Light and Simple, small rugged "pro" model
.. but rather ugly like an old phone handset chopped in half, with
sex-aid-like probes, LOL. The big round bit is actually the PTT! On-off on volume knob.
38 CTCSS (std), 83 DCS, scan with "nuisance delete" temporary lockouts (reset next time you scan),
vox (3 levels), S-meter, 132 x 56 x 39, 250g, vibe alert, key lock, call tones, 3 mic gains, key tones (+off),
roger bleep (+off), battery saver (+off),
6 radio docking charger available (allows cloning), headset socket
batt:custom Li Ion, or AAA pack as accessory
initially from www.rocom.co.uk
3.5MB large PDF: http://www.motorola.com/cgiss/docs/cls_series_userguide.pdf
Handiepro
EXTERNAL PIC (OR
LOCAL)
First rugged "pro" model, now superceded by XTN model
250g, vox, conns, batt-level, clip, dock-charge
38 CTCSS no DCS, no scan
batt:custom (13 hours)
£175 price level
Talkabout TA 200
EXTERNAL PIC (OR
LOCAL)
This model was amongst the earliest 446 radios, and is no longer generally available. EU approved at end of 1998.
vox, started at over 100 quid a unit - have since been seen for 60.
200g, mm size 116H 64W 25D, sens -120dBm/0.22uV (12dB SINAD)
38 CTCSS no DCS, no scan, no incoming alert, central PTT, no S-meter
Batts: 3AA
TA 288 EXTERNAL PIC (OR
LOCAL)
Even smaller! 2001. 150g (with NiMH / 175g with 3AA), 94mm H, 1 or 3 hours talktime
38 CTCSS, vox, scan, lock, auto-off, low batt warn, lit LCD display, sens -120dBm/0.22uV (12dB SINAD)
central PTT, no DCS, no S-meter
The USA FRS version is the TA 280 - (LOCAL)
All available : http://www.jacksons-camping.co.uk/talkabout.htm
Model PF531DSA in approval-land.
alt.radio.family re: Motorola 289 FRS
(should apply to 288s too)
> I've had for several months, 3 FR60s and 1 T289 > from Motorola. > > My problem is, the squelch on the T289 is slow... > it doesn't come off quick enough for my taste, > like the FR60s.. > > You can imagine how sick i get of repeating 'wait > a few secs before ya yap' ... The main difference that you are observing is due to the FR60 doing squelch detection in hardware and the T289 doing squelch detection in software. To lessen the effect, try higher frequency CTCSS codes like 30 -> 38. Theo. |
T4302
EXTERNAL PIC (OR
LOCAL)
Summer 2002. Funky styled pair from Argos. Red or Yellow
Call button,
60 sec TX time out (see note at end of Motorola section),
Monitor function,
Low battery alert,
'Roger' beep,
Water resistant
Unique design - winner of Las Vegas Consumer Electronics Show Innovations Award 2002.
(see http://www.cesweb.org/awards/innovations/innovations_2002/cat19.asp )
327g, 50x30x112 mm, sens -116dBm/0.36uV (12dB SINAD)
No CTCSS
Batts: 4AAA ( 20 hours at 90:5:5 )
see http://www.accessoires-motorola.com/F_RSL.htm (French)
FRS version T4300 : FCC ID 'AWWT4300' (Maxon Telecom) (0.39W ERP)
T4502
EXTERNAL PIC (OR
LOCAL)
Late 2003. Black, with blue center panel
No CTCSS, 0.4W, scan, roger bleep, 4.5" tall and less than 2" wide
Batts: 3AAA (20 hours)
US FRS version T4500, manual http://www.motorola.com/mdirect/manuals/T4500_User _Manual_E.pdf
( from http://commerce.motorola.com/consumer/QWhtml/manual.html )
(FCC ID 'K7GT4500', Giant, 0.19W ERP)
or T4525 (FCC ID 'K7GT4525', Giant Electronics, 0.17W ERP 22.4dBm)
T4508 (409MHz) from Slead Technology Co., Ltd.
T4512
EXTERNAL PIC (OR
LOCAL)
38 CTCSS, Scan
Batts: 3AAA
T5022
EXTERNAL PIC (OR
LOCAL)
mid 2006
38 CTCSS
Batts: Nimh / AA
T5412 / T5422 / T5432
EXTERNAL PIC (OR
LOCAL)
Summer 2003 (FRS version is T5620? T5710?). Blue, Rosewood
T5422: a set with charger
T5432: special Neighbourhood Watch version
EXTERNAL PIC (OR
LOCAL)
38 CTCSS (std), vox, 5 call tones, Roger beep, Battery meter and battery save,
Low battery alert, Keypad lock, 60 sec TX time out (see note at end of Motorola section)
Bad: No scan
Batts: 3AA (30 hours) or NiCd pack (12 hours standby, 3 hours comms)
£40/pair price level, Argos 553/0207
T5432 (Neighbourhood Watch) has 2 extra CTCSS tones
http://www.motorola.com/cgiss/emea/radio_t5432uk.htm
http://www.neighbourhoodwatch.net/motorola/twoway.htm
Manual : http://www.neighbourhoodwatch.net/motorola/pdf/T5432%20manual.pdf
FRS : T5710 has QT,vox,10calls, 0.33W/0.16W, FCC ID (CCT Telecom - HK) 'NC8T5700'
5720 is Giant Electronics Ltd ID K7GT5720 ?!
5420 is Giant Electronics Ltd ID K7GT5420 (vox), only 5410 scans
see also CCT R & D Limited FCC ID 'NC8T5600'
http://www.nocoo.com.cn/en/product.aspx has one as T5900
T5512 / T5522 / T5532
EXTERNAL PIC (OR
LOCAL)
Summer 2002 (FRS version is
T5800?)
T5522 : a set with charger
T5532 : 2004 model with vibrate
Blue/Black, 38 CTCSS, vox, scan (5.69 ch/second), 60 sec TX time out (see note at end of Motorola section),
160 x 60 x 30 mm, 179g with batts
side PTT at last
Batts: 3AA or special (30 hours or 15)
From http://www.radios-uk.com/t55info.htm
FRS/GMRS: T5950 is like T5532 (vibrates)
FRS: T5900 is FCC ID (Giant Electronics Ltd, Hong Kong) K7GT59XX
FRS: T5820 is FCC ID (Maxon Telecom, Korea) AWWT5800 (GMRS/FRS)
uk.rec.radio.cb re: T5512
I was interested to read on the certificate of conformity that these radios are actually made for Motorola by Maxon - can anyone confirm whether this is true of the T6222 as well? The control system is a bit fussy. Why can't + and - step through the channels without having to press Menu first? Selecting the CTCSS code is painfully slow - you can hold down + or - but the repeat speed is too slow. The scan/monitor button releases the squelch but you have to press it for 2 seconds which is too long. To listen with the squelch open you must keep holding that button down which is a bit inconvenient if you are trying to copy a weak station for an long time. The squelch setting is apparently not adjustable and seems to be too high - quite readable signals keep cutting in and out. An undocumented feature is that you can turn off the extremely annoying key-beeps by holding down "-" as you switch on. Roger bleeps are turned off by holding down + whilst switching on. The manual describes that. -- Steve |
T5622
(
LOCAL)
2005. 38 CTCSS, scan, vox.
Batts: 3
first seen http://www.01directory.com/spain/wizards/infocategories/ESTALK.PDF
T6222
EXTERNAL PIC (OR
LOCAL)
(FRS version is T6220 - T6200 is the same but without vibe)
38 CTCSS, scrambling, vox, scan, lock, auto-off (+off), 3 mic gains, low batt warn, S-meter (1 to 6),
roger bleep (+off),
152 x 56 x 33 mm, Yellow, Blue, Black, 163g, 8 hours talk-time, vibrate, "Quiet-Talk",
sens -120dBm/0.22uV (12dB SINAD)
central PTT, no DCS, 60 sec TX time out (see note at end of Motorola section)
Batts: 3AA
From http://www.maximonsolutions.com
Manual here
See Delboy's review http://www.delboyenterprises.co.uk/446_2002/t6222_review.htm
"The combination of a more sensitive receiver and a lower squelch level makes this radio a real winner." ..."all users reported excellent audio. There were many times when the T6222 received a load clear signal and my Goodman's Tracker remained silent!" ... "neat, well designed radio ... very easy to use ... The performance on RX and TX is excellent". Another : "Nice solid construction, Great range, Vibra alert, signal strength meter, drop in charger and many more."
However.. a 60 second TX timeout could be awkward (see note at end of Motorola section), and
"Although they work extremely well electronically their physical quality is spoilt..
The ultra lightweight battery cover and catch - the slightest pressure on the button can spring it loose..
the buttons are both incredibly thick and inflexible and unecessarily small, making them feel genuinely unpleasant
in use.. the belt clip is a fairly flimsy, mechanically complicated affair..
the set is a fairly uncomfortable shape, quite narrow, bulbous and fat from front to back so
it feels like you're holding a small pear.. quite difficult to stand one up vertically, almost as difficult as standing a coin on edge..
you have to press and hold a button to see a numeric signal reading, unlike some of the other sets which have a more traditional
(and sensible) bargraph S-meter which is always 'on' in the receive mode..
despite all this, the radio is worth having for its features and performance as a radio."
XTL 446
EXTERNAL PIC (OR
LOCAL)
(2005) 38 CTCSS, vox, scan, speech inversion scramble,
vibe, keylock, 6 call tones, 101 x 55 x 34 mm & 163g (w batts)
Batts: 3AA
manual (German) : http://www.pmr-funkgeraete.de/shop/wws/stuff/bda_xtl446.pdf
"A T6222 in a new case"
XTN 446 / Handie Pro XTN
EXTERNAL PIC (OR
LOCAL)
(March 2002) pro model (£160 level) scrambling, vox, desk charging, sens -120dBm/0.22uV (12dB SINAD)
83 DCS, 38 CTCSS, 60 sec TX time out (see note at end of Motorola section)
manual (German) : http://www.pmr446.de/katalog/xtn446/handbuch.pdf
see http://www.twoway-radio.co.uk/trolleyed/2
http://www.airsys.co.uk/xtn446.htm
http://www.csil-uk.com
XTX 446
EXTERNAL PIC (OR
LOCAL)
38 CTCSS, scan, VOX, scramble, keylock, keytones (+off), 3 call tones, 60 second time-out
Batts: NiMH pack
manual http://www.hellomoto-shop.de/funk/download/manuals/xtx_manual.pdf
Notes
WARNING - Motorola FRS & PMR446 radios use audio companding (COMpression/exPANDING)
for noise reduction, improving the audio Signal to Noise Ratio under marginal conditions.
This sort of noise reduction system is also used on :
HiFi Stereo VHS tapes
some cordless phones
BTSC/MTS TV sound transmission
Panda system (analogue satellite FM sound carriers, e.g. Astra in Europe)
dbx (audio cassettes - relatively rare)
see http://hyperphysics.phy-astr.gsu.edu/hbase/audio/tape4.html
Companding makes the transmitted compressed signal sound very loud and punchy on normal radios (good for DX) but reception of signals from those other radios on a Motorola will be expanded when they shouldn't be - sounding dull and dynamically very odd. "I have a Motorola Handie-Pro and the received audio from other makes sounds as if there is a sock stuffed in the speaker. The transmitted audio is loud and crisp." - Jack.
Nice marketting ploy I suppose, Motorola owners will think other brands are rubbish and buy more Motorolas...
Motorola tend to use a 60 second TX time-out, which makes them unsuitable
for gateways (XTN 446, T5512, T6222... ). With some models however, by using Test Mode normal
operation is possible WITHOUT time-outs. To enter this mode, "hold down the 'Menu' and '+'
buttons while turning the radio on. You may get a 'ring' tone which indicates
the radio has powered up in Test Mode. Pressing the '-' button will cause it to test
every segment in the LCD display."
Not ideal, but a workable fix for gateways. So far found to work with the T5412, T5512, but not
the XTN or T6222.
"During one of the regulatory compliance lab tests on the T5950 prototype unit (USA FRS),
the test procedure requires the radio to be placed in transmit mode and transmit continuously
until the batteries are flattened. The prototype unit is put in test mode for the lab test.
The output power vs. battery voltage as the batteries go down is closely monitored and recorded.
I suspect the same test mode is also used at the factory for testing and alignment during the
manufacturing process." - thanks N1DAS
However, the MultiCOM junior is a rebadged J-com, and the MultiCOM Plus and Pat are TTi radios! The plot thickens when you realise TTi have models 101, 201, 301, 701 etc., and the Multicom Pro fits in the gap, having a 401 model number. This one's going to puzzle me for years, I can tell.
MultiCOM Control EXTERNAL
PIC
(OR LOCAL)
a TTi FRS-1000
MultiCOM Jnr EXTERNAL
PIC
(OR LOCAL)
Good value, £100 price level for pair with chargers
From www.watsonhire.com and www.thunderpole.co.uk
http://www.anchorsupplies.com
a J-Com JSP-408H
MultiCOM Pat
A Korean version of the TTi PMR-101
MultiCOM Plus EXTERNAL
tti PIC
(OR LOCAL)
EXTERNAL
FreeQuency PIC
(OR LOCAL)
Tti PMR-201
MultiCOM Pro - KUKJAE
EXTERNAL PIC (OR
LOCAL)
(PSR-401 Freetalky - UNIMO)
EXTERNAL PIC (OR
LOCAL)
EU approved July 1999
Good: voice-inversion scrambling. Scans, 38 CTCSS (67,71.9-250.3) +off, 83 DCS, Alert, Vox, TX timeout,
sens -119dBm (12dB SINAD)
Bad : No S-meter, £150 price level
Batt: rechargeable pack or 4AA - 30 hours.
Manual (eng) :
http://www.albrecht-online.de/service/PMR446/A-pro/usermanual.pdf
Other goodies at http://www.albrecht-online.de/service/PMR446/multicom-pro/
See Delboy's review : multicom_pro_review.htm
"He reported that my transmission was "Blasting In", (his words!) and having previously struggled somewhat to hear me on my Goodman's Tracker wanted to know what I was using." ... "he commented that it sounded great with loud, clear audio." ... "all users gave the Multicom a good report." ..."The Multicom Pro is a solid, top class radio with a performance that easily exceeds the expectations of most users." ..."I expect to make good DX contacts with this radio" and will attempt to do so at the earliest opportunity ! "If your business needs reliable communications I believe that you'll have a hard time finding a better performing professional radio."
Also badged as Albrecht, A2E COM446, various others
Korean Kuk Jae version KSR-1 (http://www.clear.co.kr/life/ksr-1.htm)
Schematic http://www.thiecom.net/ftp/albrecht/multicompro/information/RF-circuit.pdf
shows PSR-401 model number, KUKJAE
Circuit board layout http://www.thiecom.net/ftp/albrecht/multicompro/information/main-bottom.pdf
shows both Unimo and Kukjae.
GMRS FCC ID 'O25KGMR-401A' (unimo) is nothing like it!
MX-BR100
Same as the Bowtech ComPro 446
Manual : http://www.mxonda.es/pdf/mxbr100.pdf
MRC11
EXTERNAL PIC (OR
LOCAL)
Designed for motorcycle use. 30mW only!
Batts: 3AA
See : http://www.nadywireless.com/products/product_pgs/mrc11_pg.html
Available in UK :
www.newtronic.co.uk/pages/product-pages/bike2bike.html
FCC ID BEK9E3MRC11 (manual at FCC site) (0.029W ERP)
G9917
EXTERNAL PIC (OR
LOCAL)
38 CTCSS (std), vox, scan, Low battery indicator, External ear/microphone jack, Auto power saving circuitry,
Auto scan channels
Batts: 4AAA (life 20 hours - typical)
FRS version BELL 99161 FCC ID (Shenzhen Baoan Hantong Electronics Factory) OK899161HT02
FRS/GMRS version BELL 99251 FCC ID (Shenzhen Baoan Hantong Electronics Factory) 'OK899251HT02'
Mini-Frs (EXTERNAL PIC)
(OR LOCAL)
38 CTCSS, VOX, lock, battery status, External ear/mic jack, Auto power-saving circuitry, Monitor ability,
Digital volume control
Batts: 4AAA
Seen as Topcom Twintalker 6000 (claims Roger bleep & Flashlight), Binatone EK1000+, Brondi FX-30
http://tools.topcom.net/datasheets/Twintalker%206000%20-%20E.pdf
Quite similar to FRS: Xact XFR-120 (Golden Source)! FCC ID 'C2JFRS2288'
R3022 / 1538
EXTERNAL PIC (OR
LOCAL)
38 CTCSS (std) +off, vox, scan, battery status, Fixed flexible rubber antenna, External ear/mic jack,
Auto power-saving circuitry, Monitor ability, Channel lock ability, Digital volume control
Batts: 4AAA
FRS : Bell PhoneMate 3015 FCC ID (Shenzhen Baoan Hantong Electronics) 'OK83015HT02' (GMRS/FRS)
R3051 (EXTERNAL PIC)
(OR LOCAL)
38 CTCSS, scan, VOX, lock, digital volume control, 3.5mm jack (tip mic, mid spkr, rear gnd)
Batts: 4AAA (can be plug-in charged 7.5V 200mA, center +, outer -)
Seen as Topcom Twintalker 3500, also as Ucom (see www.ucom.be), T11A from TwinPro International Holdings Limited (http://www.globalsources.com/twinpro.co / http://www.hktwinpro.com )
See http://www.ucom.be/products.html#twintalker3500
Manual : http://www.ucom.be/userguide/allTT3500.pdf
review http://www.446user.co.uk/review_index_all.html
R3056 (EXTERNAL PIC)
(OR LOCAL)
38 CTCSS, VOX, lock, battery status, External ear/mic jack, Auto power-saving circuitry, Monitor ability,
Digital volume control
Batts: 4AAA
R3072 (EXTERNAL PIC)
(OR LOCAL)
38 CTCSS, VOX, lock, battery status, External ear/mic jack, Auto power-saving circuitry, Monitor ability,
Digital volume control
Batts: 4AAA
R3080 (EXTERNAL PIC)
(OR LOCAL)
38 CTCSS, VOX, lock, battery status, External ear/mic jack, Auto power-saving circuitry, Monitor ability,
Digital volume control
Batts: 4AAA
Seen as Topcom Twintalker 1100
FCC ID 'LBBFRS216' looks same, Conair Expedition (0.09W ERP)
WT-203
EXTERNAL PIC (OR
LOCAL)
38 CTCSS, scan, vox (3 levels), dual monitor, key lock, Microphones/earphones included,
Batts: Li-Ion batteries and dual drop in charger
Maplin code N71BX (offer: 30 for pair)
"NTL is a cable tv, telephone and broadcast company operating in UK and other European countries but originally registered in the US. Nortel Networks (based in Canada, major presence in Maidenhead UK and other European countries) is a global supplier of telecomms equipment to network operators including ntl and many other operators such as BT, T-Mobile Cable and Wireless etc."
TWR : Two Way Radio
TWR301
EXTERNAL PIC (OR LOCAL)
38 CTCSS, vox, baby monitoring, scan, 85 x 58 x 26.5mm (H x W x D), 128g,
Rx Sensitivity : -119 dBm (0.25uV)
Batts: 4AAA
First seen Jan 2003 as part of comms pack (with 2 DECT phones + a PDA) at
http://www.argos.co.uk (search for two way radio)
£99.99 (#551/5930) no longer on sale
Also seen as Audioline Easy 009, Switel WT 257
Could this be a HNT-9001 ? EXTERNAL PIC (OR LOCAL)
Also seen as as FRS model PRO-501 from Nemo21 http://www.ec21.com/nemo21 EXTERNAL PIC
TWR500 (NTL5012WA twinpack)
EXTERNAL PIC (OR
LOCAL)
First noticed Aug-2001, www.argos.co.uk
A Victory Concept Industries VC-901
TWR 503
A four-pack of TWR500
http://www.comparestoreprices.co.uk/ntl-twr-503-4-pack.asp
PMR 901 - a Victory Concepts VC-901
PMR 914 - a Victory Concepts VC-914
BM-35
EXTERNAL PIC
(OR LOCAL)
baby monitor, 8ch, 38 CTCSS
FX-10
EXTERNAL PIC
(OR LOCAL)
(2003) 38 CTCSS (std) +off (0), scan, vox, Roger bleep +off,
key tones +off, 5 call tones, keylock
ear/mic/chg jack,
56x30x145mm, 147g
some models seem to have dual watch or flashlight
Batts: 4AAA (charger 7.5V 200mA)
Also seen as Topcom Twintalker 3300, Brondi FX-10
http://tools.topcom.net/userguides/TT%203300.pdf
(looks just like a Bellsouth 1010 made by Golden Source?)
FX-15
EXTERNAL PIC
(OR LOCAL)
First noticed 2004
38 CTCSS, scan, vox
FX-20 ?
Daxian 2888, Topcom Twintalker 5000, Brondi FX-20, Talkcom TC-300
FX-22
EXTERNAL PIC
(OR LOCAL)
First noticed 2006
38 CTCSS, scan, vox, socket, 4AAA
FX-25
EXTERNAL PIC
(OR LOCAL)
First noticed 2004
38 CTCSS, scan, vox, socket
Seen as Brondi FX-5
FX-26
EXTERNAL PIC
(OR LOCAL)
First noticed 2004
38 CTCSS, scan, vox, socket, 4AAA
FX-40
EXTERNAL PIC
(OR LOCAL)
First noticed 2004
socket
FX-50
EXTERNAL PIC
(OR LOCAL)
First noticed 2004
scan, beeps
Seen as Binatone EK1000 with CTCSS & Vox
FX-55
EXTERNAL PIC
(OR LOCAL)
First noticed 2004
scan, beeps
FX-60
EXTERNAL PIC
(OR LOCAL)
First noticed 2004
38 CTCSS, scan, vox, COMPANDING, beeps (+off), socket, flashlight, key lock
Seen as Binatone MR620, Microcom PM 4900
FX-70
EXTERNAL PIC
(OR LOCAL)
First noticed 2004
38 CTCSS, scan, vox, beeps (+off), socket, key lock, Super Bright LED Flashlight and Stopwatch
FX-75
EXTERNAL PIC
(OR LOCAL)
First noticed 2004
38 CTCSS, scan, vox, beeps (+off), socket, key lock, Super Bright LED Flashlight,
Stopwatch, monitor, removable beltclip
Batts: 4AAA?
Seen as Topcom Twintalker 3800
FX-100
EXTERNAL PIC
(OR LOCAL)
First noticed 2006. Vox, scan, 156g
Batts: 3AA
Seen as Brondi FX-100
PMR EXTERNAL PIC (OR
LOCAL)
50 × 95 × 25 mm, 100g (without batteries)
Batts: 3AA
FRS : FCC ID OKM905 (Clearlink Communications)
TP326
EXTERNAL PIC
(OR LOCAL)
A Tekcom TP-326
First noticed Autumn 2002
38 CTCSS (67,71.9-250.3) + off, scan, switchable key and roger bleeps, vox (2 levels),
auto power off after 2 idle hours (switchable), 105 x 58 x 29 mm, 98g (without batts),
sensitivity 0.5µV 12 dB SINAD
Batts: 4AAA
was £30 from Maplin (code N33AJ). Manual (PDF) was http://www.maplin.co.uk/pdf/N33AJ.pdf
FRS version (TP-323) WRF108 does NOAA Weather Radio too
http://www2.oregonscientific.com/noaa/wrf108_yel.html
Manual http://www2.oregonscientific.com/service/instructions/wrf108.pdf
FCC ID 'KLLTP-323' (0.49W ERP)
"After a couple of email iterations with Oregon Scientific support it seems that the TP 326s supplied through Maplin might have been a faulty batch. This was the final Oregon response : "It has come to our attention that Maplin has some 'faulty batch' of the TP326, so please return the item to Maplin with your receipt."
Previously Oregon had suggested the keypad lock sequence was : ".. lock or unlock the TP326 by using the UP/DOWN button to avoid accidental pressing. Then, press and hold down MONI(SHIFT), then press CALL (VOX) to lock or unlock the keys."
The new ones (Serial 303 etc.) have a small hole inside the bottom of the battery compartment with a picture of a padlock. Pushing a paperclip into it toggles the DISPLAY through FM (stereo) and MW!" (No evidence of the broadcast band receive circuitry evident in the American models)
"the little hole accesses a membrane switch and any sharp object poked in here may damage the switch, especially given frequent use."
"If you tap a paperclip onto the switch in the hole, it toggles the "radio" FM and MW modes, and then back to normal. If you HOLD the paperclip in for a couple of seconds, the Keylock symbol comes on, and the keys are locked, but it does not have to display the FM or MW details."
"has a clock, this is not backed up and has to be reset each time the batteries are changed."
"The radios have a single 2.5mm stereo jack socket with connections tip=ear-piece, mid=mic, shield=common return. Annoyingly, what appears to be a 3.5mm battery charge socket (i don't know the polarity or voltage level yet) is beside the 2.5mm socket at about the right distance to make it look like a dual headset jack input."
"I tested the larger jack socket. It's stereo and the barrel is ground as expected. The tip and ring don't connect to anything. There is a redundant charge circuit weaving its way upwards towards the tip from the +ve battery terminal and has unoccupied positions for a diode and resistor/fuse along the way, also a pair of decoupling capacitors to ground. I'm just about to pop an IN4001 in there and a 600mA fuse which should do the trick. This is a nice easy mod which should only take 10mins and cost 50p. The socket will then accept a 6.8v source, current limited to 55mA which will give a 12hour slow charge."
"Incidentally, the radio draws 40mA with the receiver muted or scanning and 340mA under transmit. When not in scan mode, the power save mode comes in after around 8 seconds with the usual mark/space ratio of 1/5"
Fairly robust build quality, sensitive, and good audio.
The cheap price has led to a cult following, with mods available :
http://www.btinternet.com/~g4kqu/446_PMR_Convert.htm
Locked up? "supply 4.5v across eprom pin 4 gnd,pin 8 +ve,and switch on, I have done 17 of these units with total success" - Phil29 @ hotmail .com
TP329
EXTERNAL PIC
(OR LOCAL)
A Tekcom TP-329
Grey+Orange or Grey+Silver, First noticed Summer 2003
38 CTCSS, vox, scan, lit LCD, key lock, key bleeps, roger bleep, power save,
auto power off, batt status display, rubberised finish, weather/shock resist, socket (same as 326)
Batts: 3AAA (22 hours)
If you want to keep the Squelch off
1. take off the beep that sounds when u press any button
2. press and hold the squelch for about 3.2 seconds
3. whilst still holding down the button for the squelch (Menu button), now press the Power button
as well so that the lock is enabled - the squelch will remain open until u press PTT or unlock
manual: http://www.oregonscientific.co.uk/assets/manuals/TP329.pdf
FRS version (FCC ID KLLTP-329 - schematics at FCC site - 0.4W ERP)
TP380 EXTERNAL PIC (OR
LOCAL)
2004. A Tekcom TP-380
38 CTCSS, scan, vox, vibe alert, 'True flexible antenna', Rubberised finish, Keypad lock
Batts: ? (docking charge) 'Up to 21 hours'
TP388 EXTERNAL PIC (OR
LOCAL)
A Tekcom TP-388
was sold by Maplin
see http://www.compunity.com/start.php?partner=1184
..enter TP-388 in the search box "suchen"
TP398 EXTERNAL PIC (OR
LOCAL)
A Tekcom TP-398
KX-TR320E
EXTERNAL PIC (OR
LOCAL)
£59, http://www.misco.co.uk
- (W x H x D) 63 x 109 x 32 mm - 117g (180g with batts)
GOOD: 38 CTCSS (67,71.9-250.3) +off, flip-phone styling (not radio-like), excellent clear modulation,
good range, 10 volume levels (3 in phone mode), 3 vox levels, 4.5V power socket,
sockets ( 3.5mm mono spkr, 2.5mm mono mic),
fold-down antenna, 5 ring tones, splash-proof,
sens -120dBm (12dB SINAD)
BAD : poor for scanning, no tone 0, momentary monitor button, no in-unit charging, no vox in phone mode,
fixed squelch level.
Batts: 3AA - 30 hours (5% receive, 5% talk, 90% standby)
KX-TR325E
£67 - as above, with scrambling, and vibe-alert.
FCC ID ACJ96NKX-TR325 - "398mW ERP" (manual at FCC site)
Two products that don't appear to have made it.
FRS8
EXTERNAL DOC (OR
LOCAL DOC)
FRS8X
EXTERNAL DOC (OR
LOCAL DOC)
Lite-Com II
EXTERNAL PIC (OR
LOCAL)
First noticed summer 2003. Headset. Vox, 150/25mW, 2 hour auto shut off, electronic voice speaks settings changes,
mics pick up ambient noise so you're not isolated, approved ear defenders, can connect and mix in CD/FM radio too,
390g
No CTCSS/DCS
Batts : 2AA
See PDF Brochure
FRS version : FCC ID (Aero Company) 'NUVMT7H7460A' (0.084/0.033W)
other FRS radio made by Peltor : "PowerCom" FCC ID 'NUVMT72H7-460' (0.185W ERP)
Penguin 1
EXTERNAL PIC (OR
LOCAL)
38 CTCSS, vox, socket, charging
WD-0032
EXTERNAL PIC (OR
LOCAL)
38 CTCSS, vox, socket, charging
WD-0062
EXTERNAL PIC (OR
LOCAL)
38 CTCSS, vox, socket, charging
31015 Viper
EXTERNAL PIC (OR
LOCAL)
A Polish version of the Albrecht Tectalk Contact (thanks Andrzej)
See http://www.radmor.com.pl/urz_31012.htm#31015
5001
EXTERNAL PIC
(OR LOCAL)
5003
EXTERNAL PIC
(OR LOCAL)
Like the Alan 443
5004 set of 5003
6000
EXTERNAL PIC
(OR LOCAL)
A Hoffer 3381
Also seen as Vivanco FP200 (black) and Alecto FR-8 (black)
For more details see the slightly different Goodmans 114
See VIVANCO REVIEW, hints and tips
RD-018 / RD-008
EXTERNAL PIC
(OR LOCAL)
Wristwatch PMR
(no CTCSS?) Scan, vox, call tone, Power saving circuit,
Folding antenna,
Display with back light,
Dimensions: 6,5 x 4,5 x 2,5 cm (without antenna),
Weight: 80 g (with battery inside)
Batts: 3.7V lithium ion cell (charging: 9V DC / 100 mA)
Seen as Cobra SpA Bernina, Elro WT05
FRS : FCC ID 'SDOFRSRD018' (ERP 12mW 11dbm)
RD-028
EXTERNAL PIC
(OR LOCAL)
Wristwatch PMR
RD-688
EXTERNAL PIC
(OR LOCAL)
38 CTCSS, scan, vox,
Battery Saver & Auto Squelch,
Without Antenna 95 x 55 x 25 mm,
Useable Sensitivity -120dBm
Batts: 4AAA - 30 hours (5:5:90)
PMR 838 (A J-Communications JDP-) (LOCAL)
lite-DiCo (DIgital COmmunicator XA1500)
EXTERNAL PIC (OR
LOCAL)
"intelligent walkie-talkie", baby monitoring, remote operating,
distance checking, voice recording
FCC ID RQSDICOXA1500, 0.5W ERP
PMR103
EXTERNAL PIC (OR
LOCAL)
FM Radio (mono), 38 CTCSS, Vox, Scan, Dual Watch, lock, LCD, Beeps, wall adaptor charge
FRS version FRS202
PMR568
EXTERNAL PIC (OR
LOCAL)
FM Radio (mono), 38 CTCSS, Vox, Scan, Dual Watch, lock, LCD, Beeps, wall adaptor charge
FRS version FR590C (Audiovox 550/560) : FCC ID 'BGAFR560', 'OTVSBTFR530-2' ?
WT-600
EXTERNAL PIC (OR
LOCAL)
38 CTCSS
Batts: 3AA
http://www.serd.de/html/wt_600.html
S300
EXTERNAL PIC (OR
LOCAL)
NO CTCSS, scan, vox, keylock, monitor, docking charge
from Argos - 553/0609
similar to Topcom Twintalker 3000
Fly Talk august 2001
EXTERNAL PIC
- Translucent ice blue (LOCAL)
or black (LOCAL)
A badged Apollo Fly Talk PMR200 FM
FreeTalk Pro
(
LOCAL)
an HYT TC-366
FreeTalk UHF
EXTERNAL PIC (OR
LOCAL)
re-badged Maycom
FreeTalk 2
As above, with vibe alert
Freecomm 130
EXTERNAL PIC (OR
LOCAL)
A Hoffer 303. 2004
http://www.stabo.de/seiten/freecomm130.html
Freecomm 150
EXTERNAL PIC (OR
LOCAL)
No CTCSS?, scan, 54 mm x H 116 mm x T 27 mm (with antenna), 73g/104g
Batts: 3AAA
Freecomm 200
EXTERNAL PIC (OR
LOCAL)
A Hoffer 3380
http://www.stabo.de/seiten/freecomm200.html
Freecomm 220
EXTERNAL PIC (OR
LOCAL)
Spring 2003. A Hoffer 505 with no CTCSS
http://www.thiecom.de/lpd/freecomm220.htm
Freecomm 300
EXTERNAL PIC (OR
LOCAL)
a J-Com JP-401EX
Also President TXMS-300
Freecomm 450
EXTERNAL PIC (OR
LOCAL)
A Hoffer 6608
Freecomm 500 EXTERNAL PIC
(OLDER Model?)
(OR LOCAL)
versions of J-com JDG-415NX, JDP-408H, JDP-414H
Scan, dual watch, 38 CTCSS, Vox, monitor, 50.6 x 95.5 x 26 mm, 140g
Batts: 4AAA
Newer translucent model is the 500 FM (with FM radio)
Freecomm 550
EXTERNAL PIC (OR
LOCAL)
an HYT TC1688
Outdoor
EXTERNAL PIC (OR
LOCAL)
a J-Com PM1500XTM
Scramble?
See http://www.stabo.de/seiten/OUTDOOR.html
Voice Pager EXTERNAL PIC (OR
LOCAL)
A Maycom voice pager
Pager style... interesting! 52 x 88 x 26.6 mm, 65g
Batts: 2AAA
See http://www.stabo.de/seiten/VoicePager.html
PMR-433 EXTERNAL PIC
looks like a A Headline HL-110 / HL-112 (Alan 441)
PMR-443 (
LOCAL)
446 version? Not known if available to buy
PMR-446
same as VC-901
XR-1 Xploror EXTERNAL PIC
(OR LOCAL)
Not known if available - Hoffer?
XR-007 (was XR-3) EXTERNAL PIC
(OR LOCAL)
446 in a wristwatch!
"2-way Multi-Channel FRS/ PMR in a WATCH, Maintain a contact with your family or friends in outdoor activities,
Communication range up to 1 km, Spring Up High Gain Antenna, Voice Activated Microphone,
Built-in Rechargeable Li+ Battery, Pop-up Microphone with Digital Thermometer
Not known if available to buy
WT 007 EXTERNAL PIC (OR
LOCAL)
same as Audioline PMR Easy 007
manual http://www.switel.com/download/pdf/WT007.pdf
WT 008 / 108 EXTERNAL PIC (OR
LOCAL)
A Victory VC-989
WT 010 EXTERNAL PIC (OR
LOCAL)
same as Audioline PMR Easy 005
WT 117 / 118 / 119 EXTERNAL PIC (OR
LOCAL)
same as BT Freeway
117 with selective call
118 with handsfree facility using voice activation
119 with handsfree facility and FM radio
Manuals http://www.switel.com/download/pdf/WT117.pdf
http://www.switel.com/download/pdf/WT119.pdf
WT 227 EXTERNAL PIC (OR
LOCAL)
A Victory VC-968
see http://www.polsonic.com.pl/snwt227.htm
manual http://www.switel.com/download/pdf/WT227.pdf
WT 237 EXTERNAL PIC (OR
LOCAL)
same as Audioline Easy 012
WT 257 EXTERNAL PIC (OR
LOCAL)
same as NTL TWR301
WT 330 EXTERNAL PIC (OR
LOCAL)
38 CTCSS, vox, torch, Keypad lock, Battery condition indicator, Baby monitor,
Room monitoring, Integrated stop watch
Looks like a restyled Brondi FX-20 (On Real)
WT 370 / 270 EXTERNAL PIC (OR
LOCAL)
A Victory VC-231 - set without docking chargers is WT 270
http://www.kropf.ch/shop/de-ch/dept_584.html
1233 EXTERNAL PIC (OR
LOCAL)
CTCSS, scan, vox, dual watch, lock, headset socket, charge
Batts: AAA
1293 EXTERNAL PIC (OR
LOCAL)
CTCSS +scan, scan, vox, dual watch, lock, headset socket, charge
Batts: AAA
1298 EXTERNAL PIC (OR
LOCAL)
CTCSS +scan, scan, vox, dual watch, lock, headset socket, charge
Batts: AAA
3821 EXTERNAL PIC (OR
LOCAL)
Wristwatch PMR
CTCSS +scan, scan, vox, dual watch, headset socket, charge, scrambler
Batts: L-ion
Seen as Eittek EK-0409, Conda Electronic Technologies WFT-020, and from Shaoxing Xinlian Comm. Tech. Ltd. Co.
5821 EXTERNAL PIC (OR
LOCAL)
Pendant Pager PMR
CTCSS +scan, scan, vox, dual watch, headset socket, charge, scrambler
Batts: L-ion
5892 EXTERNAL PIC (OR
LOCAL)
Pendant Pager Stopwatch PMR
headset socket, charge, scrambler, diameter 65 x 22mm
Batts: L-ion 3.2-4.2V
http://www.sztxd.com/english/pro_5892.htm
FRS-310 EXTERNAL PIC (OR
LOCAL)
Yellow/Black, 47 CTCSS,
7-digit frequency display,
key bleeps,
Key lock,
Scan, vox,
Energy savings mode
Monitor,
Roger BEEP,
Dimensions: 53 x 25 x 140mm
Batts: 4AAA or plug-in power
seen as DNT TouchCom (TC-1)
PMR-1700 EXTERNAL PIC (OR
LOCAL)
Not yet seen on sale. 98 x 28 x 57 mm, 93.2g, < 0.2uV (12dB SINAD), no CTCSS?
UHF-70 EXTERNAL PIC (OR
LOCAL)
38 CTCSS, -120 dBm (12dB Sinad), 80(H) x 22(W) x 50(D)mm, 80g, vox
Batts: 3AAA
seen as DNT & Intek UHF100
Looks like an evolved EuroWave with different button layout. Same size, finish, colours, shape, DNT has 47 CTCSS etc.
TC-300 EXTERNAL PIC (OR
LOCAL)
An On-Real FX-20
TC-400 EXTERNAL PIC (OR
LOCAL)
38 CTCSS, vox (3 levels), dual watch, monitor, 5 call tones, Roger Beep
Batts: AAA
TC-500 EXTERNAL PIC (OR LOCAL)
TPC446
214g, 100 x 60 x 30 mm
same as TecTalk Contact
DualTalk / WT405
EXTERNAL PIC
(OR LOCAL)
Dualband LPD/PMR (433/446) in a Tsuen Shing WT-405 case
38 CTCSS, scans, 85 x 55 x 30 mm
Batts: 4AAA
http://www.thiecom.de/lpd/wt405.htm
McTalk 446 EXTERNAL PIC (OR LOCAL)
A Hoffer 3380
Messenger 446
EXTERNAL PIC (OR
LOCAL)
a badged Tsuen Shing NLM-8
Mico 446 (summer 2000)
EXTERNAL PIC (OR
LOCAL)
Very similar to the Minitalk 99 FRS! Front key layout is different - odd!
38 CTCSS. 71g. 83mm H. mic socket, spkr/ear socket
Batts: 3
see : http://www.thiecom.de/lpd/mico446.htm
On-air 446
EXTERNAL PIC (OR
LOCAL)
A Hoffer 3331
Professional 446 (Pro 446)
EXTERNAL PIC (OR
LOCAL)
Same as Maxon SL-25
PT3208S
EXTERNAL PIC (OR
LOCAL)
Pro model (2004) 38 CTCSS / 166 DQT, scan, mic socket, 55 x 32 x 115 mm, 130 g (240 g with batt pack)
Batts: custom 7.2V Ni-MH 1300mAh pack
A Kirisun (http://www.kirisun.com) PT3208S / PT-446 programmed with 15 PMR446 channel combinations, (Kirisun PT3208S normally covers 450-470MHz, PC programmed, 4W or 1.5W, SMA antenna, 12.5/25kHz bandwidth)
Also seen as Intek MT-446
PT-3508 (3)
EXTERNAL PIC (OR
LOCAL)
Pro model (2005) 39 CTCSS / 166 DQT, scan, mic socket,
Additional 42 Channel HAM Radio 430 - 440 MHz (5W),
B 59 x T 42 x H 117 mm, 322g,
Power Saving Mode, Time-Out-Timer, 25/12.5kHz bandwidth for HAM Radio Channels,
PC programmable
Batts: pack: 7.2V 1100mAh Ni-MH
see http://www.team-electronic.de/englisch/produkte/pmrhandf/pt3508_e.htm
From Kirisun (http://www.kirisun.com) (1) is 400-420MHz, (2) is 450-470
Seen as Intek DX-446
ScramTalk 808
EXTERNAL PIC (OR
LOCAL)
A Hoffer 6608
Shorty 446 EXTERNAL PIC (OR LOCAL)
Talk & Radio TR 446
EXTERNAL PIC
(OR LOCAL)
a Tsuen Shing WT-401
see http://www.cb-versand.de/team-pmr446/team-pmr446.html
TeCom 446 (autumn 2000)
EXTERNAL PIC (OR
LOCAL)
38 CTCSS (67,69.3-192.8), Vox, scan, dual watch, Signal meter, 82mm H, black(!), Squelch adjust,
single headset socket
Batts: 4AA (40 hours)
"This is probably the best PMR446 radio we have seen, it has all the key features that
a good PMR 446 radio requires, but it's ease of use, clarity of audio and tiny size
really makes this one stand out from the crowd." - 90% score - Thunderpole (£90)
BAD : misses standard tones above 192.8
see : Thunderpole and http://www.thiecom.de/lpd/techcom446.htm
More info : http://www.cbshop.nl/Handl%20tecom_446.htm
TeCom 508
EXTERNAL PIC
(OR LOCAL)
(summer 2003)
A Hoffer 508
TeCom XP
EXTERNAL PIC
(OR LOCAL)
(2005) 50 CTCSS 210 DCS, 278g 55 x 37 x 102mm, can also be programmed 450-470MHz?, antenna looks removable!
Batts: Custom 6V 1300mA NiMh pack
Manual www.pmr-funkgeraete.de/shop/wws/stuff/bda_tecom_xp.pdf
TwinTalk
EXTERNAL PIC
(OR LOCAL)
vox, 58 x 33 x 110 mm, same headset conns as TeCom 446
Batts: 3AA
UHF-Handy
EXTERNAL PIC
(OR LOCAL)
A Dualband Tsuen Shing WT-417
WF-409-01
EXTERNAL PIC
(OR LOCAL)
38 CTCSS, scan, vox, stopwatch, call tones, Ringer on/off, Key tone on/off, dual watch,
208mm(L) x 145mm(W) x 63mm(H) & 420g
Batts : ? 4.3V - 6V Standby time: 30-35 hours
http://www.tech-well.com.hk/products_details.asp?ProductID=WF-409-01
TP-326
Seen as Oregon Scientific TP326 - details there
TP-329
Seen as Oregon Scientific TP329 - details there
TP-388 EXTERNAL PIC (OR
LOCAL)
300mW, 38 CTCSS, VOX, 85 x 52 x 20 mm, 73.3g
"auto squelch and off option, Auto off after 2 hrs idle, Beep on/off, keypad lock, backlighted LCD,
scan, charging port, speaker/mic jack, leather cases belt clips and batteries." (thanks Alan)
Batts: 3AAA
Seen as Oregon Scientific TP388, FRS version : RadioShack 21-1859 / 21-1825
http://www.tekcom.com.hk/tp388p.htm
TP-396
EXTERNAL PIC (OR
LOCAL)
Base station. 38 CTCSS (std) +off. Beep. 178 x 37 x 118mm, socket
Power - via mains
Seen as Lafayette Central
see http://www.marcucci.it/images/cataloghi/pdf/Lpd_pmr446.pdf
http://www.marcucci.it/english/prodotti/schede/scheda.asp?ID=7448
FRS Version : Realistic 21-1845 : FCC ID 'AAO2101845' (0.49W ERP) and FCC ID (Tekcom Industries Limited) 'KLLTP-396'
TP-398
EXTERNAL PIC (OR
LOCAL)
38 CTCSS, scan, Key lock, Dual Watch, key tone & Roger Beep, VOX, External MIC (CHG)/SPK jack with cover,
Auto power off, 2 memory channels, removable belt clip, 55 x 121 x 38mm, 145g
Batts: 4AA
Seen as Oregon Scientific TP398, Lafayette Elite, Europsonic (www.europsonic.fr)
http://www.tekcom.com.hk/tp398.htm
TP-??? / PJ-117
EXTERNAL PIC (OR
LOCAL)
(LPD version is PJ-117)
38 CTCSS, Vox, 54 x 112 x 39 mm, 138 g less batts
Batts: 4AA
seen as A2E Easytalk and Intek PMR 800C
TW 1000
Re-badged Maxon RS446 / PMR-508 - (LOCAL) - bigger PIC
EU approved Nov 1999
First seen in a newspaper advert
- Christmas 1999. Seem OK. 60-70 quid price per pair.
See http://www.nev-comms.com
and http://www.amherst.co.uk/walkietalkie.htm
"This is an approved badge engineered variant of Maxon type PMR-508"
Talkeasy 100
(LOCAL)
First seen in a newspaper advert
- December 2000. 50 pounds for a pair. Re-badged Tsuen Shing NLM-8.
See http://www.thelink.co.uk
Talk Easy 145 (TE-145) (a Tsuen Shing WT-417)
EXTERNAL PIC (OR
LOCAL)
Dixons, 2003
Same as the TE-157
TE-150 (a Tsuen Shing WT-405)
mods http://oh3tr.ele.tut.fi/~ftp/modifications/telcom/te150/te150ham.html
http://www.oh5abl.org/alasivut/rakentelu.htm
http://bigbloke.sdf-eu.org/telcommods/
TE-157 (a Tsuen Shing WT-417)
EXTERNAL PIC (OR
LOCAL)
Dixons, 2003
TE-200 EXTERNAL PIC (OR
LOCAL)
First seen at TheLink.co.uk, Nov 2001 -
70 pounds for a pair
a Tsuen Shing WT-401
107
EXTERNAL PIC (OR
LOCAL)
Scan, 100 x 59 x 38 mm, 86g
Batts: AAA
0100
EXTERNAL PIC (OR
LOCAL)
A Hoffer 808
??
EXTERNAL PIC (OR
LOCAL)
(Spotted 2004)
38 CTCSS
Batts: 4AAA
Looks like the DNT XLP 77
PMR 2003
EXTERNAL PIC (OR
LOCAL)
(Spotted 2003)
an Art ProTech TC-109 with CTCSS
PMR 2005 ( LOCAL)
a Hoffer 808
PMR 3000 ( LOCAL)
same as Magnum PMR-2004
"SunCorp Communications Limited ... Brand name: BT, Mondial, Siemens, Telstra, Telecom New Zealand, Fujifsu Elotechnica, Brondi, Topcom, Audioline, Switel, etc " - interesting!
http://www.topcom.com.hk/privatemobileradio.php
Babytalker 1000
EXTERNAL PIC
(OR LOCAL)
(2004) PMR Baby monitor - parent's unit is a white TT 3300
38 CTCSS, vox
tools.topcom.net/userguides/PMR%20Babytalker%201000%20-%20E-NL-FR-D-SW-DK.pdf
Twintalker 1000
EXTERNAL PIC
(OR LOCAL)
A Daxian 1380
http://tools.topcom.net/userguides/HL_TT_1000.pdf
Multitalker 1000 B
EXTERNAL PIC
(OR LOCAL)
38 CTCSS, scan, vox, DW, Call Tones: 5, Monitor function, Back light, Roger Beep (+off),
Stop Watch, 24 hour time watch, Ear/Mic/Charge jack
Twintalker 1100 / 1150
EXTERNAL PIC
(OR LOCAL)
(2003) NO CTCSS. Roger bleep. Scan, call, lock, monitor
Headset jack (tip=mic, ring=spkr) doubles as charge jack (7.5V 200mA)
Batts: 4AAA
tools.topcom.net/datasheets/Twintalker%201100%20-%20E.pdf
Manual http://tools.topcom.net/userguides/Twintalker%201150%20E-NL-FR-D-SP-IT-PORT-SW-DK-NI-FI-GR-TS.pdf
Very much like the Nation Ford R3080
Twintalker 1200
EXTERNAL PIC
(OR LOCAL)
http://www.topcom.com.hk/privatemobileradio.php
Twintalker 1300
EXTERNAL PIC
(OR LOCAL)
(2004) No CTCSS? Scan, 5 call tones,
Roger Beep +off, Keytones +off, headset socket.
manual http://tools.topcom.net/userguides/Twintalker%201300.pdf
Twintalker 1400
EXTERNAL PIC
(OR LOCAL)
(mid 2004)
NO CTCSS. Scan, Call, monitor, electronic volume control, keylock
Batts: 30 hours standby
http://tools.topcom.net/datasheets/Twintalker%201400%20-%20E.pdf
Twintalker 1500
EXTERNAL PIC
(OR LOCAL)
Twintalker 2000
A Hoffer 3380
Manual : tools.topcom.net/userguides/Twintalker%202000%20E.pdf
Twintalker 3000
EXTERNAL PIC
(OR LOCAL)
(2002)
38 CTCSS, bleep, scan, vox, keylock, 3.5mm ear/mic/chg jack (headset : tip mic, mid spkr, rear gnd)
Batts: 4AAA (charge socket 6V 300mA, 8-10 hours, 3.5mm tip +, mid n/a, rear -, plug in and power up)
Manual : http://tools.topcom.net/userguides/Twintalker%203000%20E.pdf
See http://www.pulsarfm.nl/tt3000.htm
Also seen as Ucom, RoyDac :
http://www.astec.es/Productos/Uso_sin_licen/twintalker/twintalker.htm
and Southwestern Bell S300
An FRS/GMRS 2W version is the BellSouth 2276GY, or BE-1438SP FCC ID 'OK81438HT02' (Shenzhen Baoan Hantong Electronics, Baoan, China) (0.126W ERP)
Twintalker 3300
EXTERNAL PIC
(OR LOCAL)
(2003) an On-Real FX-10
Twintalker 3400
EXTERNAL PIC
(OR LOCAL)
Twintalker 3500
EXTERNAL PIC
(OR LOCAL)
(Summer 2003) A Nation Ford R3051
manual http://www.ucom.be/userguide/allTT3500.pdf
Twintalker 3600
EXTERNAL PIC
(OR LOCAL)
From budget shops, looks like the 6100 on Topcom's site.
Also seen as Ucom Twintalker 3600
Manual http://www.ucom.be/userguide/TT3600_D_GB_FR_N_PL.pdf
Twintalker 3700
EXTERNAL PIC
(OR LOCAL)
(2005)
Twintalker 3800
EXTERNAL PIC
(OR LOCAL)
(2004) An On-Real FX-75
Twintalker 4000
EXTERNAL PIC
(OR LOCAL)
http://www.topcom.com.hk/privatemobileradio.php
Twintalker 4700
EXTERNAL PIC
(OR LOCAL)
Twintalker 5000
EXTERNAL PIC
(OR LOCAL)
A Daxian 2888
38 CTCSS, scan, beep, vox, flashlight, 120 x 52 x 30 mm, 122g
Batts: 4AAA (charge socket 12V 100mA center+ outer-)
Manual :
tools.topcom.net/userguides/Twintalker%205000%20E-NL-FR-D-SW-DK-FI.pdf
Seen as Brondi FX-20 (Giallo=yellow) EXTERNAL PIC (OR LOCAL)
Twintalker 6000
EXTERNAL PIC
(OR LOCAL)
(2003) A Nation Ford 'Mini-FRS'
Twintalker 6100
EXTERNAL PIC
(OR LOCAL)
http://www.topcom.com.hk/privatemobileradio.php
Twintalker 6800
EXTERNAL PIC
(OR LOCAL)
38 CTCSS,scan, vox, DW, Call Tones: 5, Monitor function, Back light, Roger Beep (+off),
Stop Watch, 24 hour time watch, Ear/Mic/Charge jack, Key Lock function, Splash waterproof (IPX4)
"Extra compander noise reduction circuitry to get crystal clear sound"
batts: 4AAA
Seen as Binatone Adventurer 100, Brondi FX-25
Twintalker 9100
EXTERNAL PIC
(OR LOCAL)
38 CTCSS (std) (+off), scan, vox, 5 Call Tones, Monitor, Dual Watch,
Back light,
Roger Beep (+off), Key bleeps (+off),
Stop Watch,
24 hour time watch,
Earpiece connector,
Drop water proof: IPX2,
"Extra compander noise reduction circuitry to get crystal clear sound",
Vibrator, Alert Key
Batts: AAA pack, or 3?4? AAA
Manuals http://www.topcom.be/userguides.php?ID=462
TB5095 EXTERNAL PIC (OR
LOCAL)
Wristwatch 446. Scan (with lock), vox, 3.7v Li-ion and Battery Charger
very similar to Citisound T-190.
Also seen as GMRS XACT X2X, and GMRS/FRS X32X (from Global Link - Trendy Blue is their
subcontracted manuf.?) FCC ID 'QL2FRSX32X' (manual at FCC site) RF o/p around 130mW,
Global Link FW13 'QL2FRSFW13' (Radion Co Ltd http://radion.co.kr/ ),
Shenzhen Saintmart SM040,
WT3010 EXTERNAL PIC (OR
LOCAL), XACT X2X, Citisound T-190,
ITT Freetalker,
HungTek/Golden Dragon WWT-008 (www.hungtek.com),
Conda Electronics WFT-007 ( http://www.goconda.com/ ?),
Bright Mark Ind Ltd MX-212, Saintmart Crafts & Premiums Co Ltd SM040,
Eittek EK-0410,
Asianation (Taiwan) Ltd WT-001,
Blue Hi-Team RD-008,
E-Fortune Tech. Development Co., Ltd WT007,
Richway Technologies XFD-008CTCSS
WFT008 EXTERNAL PIC (OR
LOCAL)
Wristwatch 446.
Also seen as E-Fortune Tech. Development Co., Ltd WT008
WFT009 EXTERNAL PIC (OR
LOCAL)
Wristwatch 446.
Some manufacturing by Golden Dragon International http://www.ec21.com/chuangneng http://www.gd-intl.com (models 401,417,431)
Comparison table http://www.tsuenshing.com.hk/Comparison2W.htm
NLM-8
EXTERNAL PIC
(OR LOCAL)
Cheap-n-cheerful, size 54x55x90mm
BAD : No CTCSS. LED display can't be good for batt life! Always tuned to channel 1 when you switch it on.
Beep, Auto power saving, Low battery indicator, socket (2.5 mm stereo, tip Mic, mid Spkr, gnd)
Batts: 3AA
Most widely known as Team Messenger, also seen as NLM-8PMR, Jopix Blue, Telcom Talkeasy 100, Pocket Comm Starter, J-23, Lloytron EXTERNAL PIC (OR LOCAL)
Manual :
www.cbradio.cz/doc/TEAM/PMR%20Messenger%20446/manual.pdf
Circuit diagram : http://www.cbradio.cz/doc/TEAM/PMR%20Messenger%20446/schema.pdf
Review at http://www.trailzone.co.uk/telcomte100.html seems quite happy with them.
FRS version NLM-14 : FCC ID 'PERNLM14' (.27W ERP)
WT-401
EXTERNAL PIC
(OR LOCAL)
as WT-405 but with added FM radio (most known as Telcom TE-200)
38 CTCSS (67,71.9-250.3) +off, VOX, Auto power save, Low battery indicator, Headphone jack, Roger beep,
Call and monitor functions, Flip-up antenna, scans, tone scan, 8 calling tones, LCD backlight,
Key lock, Rechargeable function, selectable red/amber/green display, sensitive.
Same headset conns as NLM-8
size : 56 x 23 x 87 mm (89 mm incl. antenna)
Batts: 4AAA
Also seen as Telcom TE-200, Team Talk & Radio, FlyCom FlyTalk SnowFM, Conrad Pocket Comm Radio, City FM, Cobra (SpA) Everest
Manual :
www.cbradio.cz/doc/Conrad/PMR%20Pocket%20Comm%20Radio/manual.pdf
FCC ID 'PERWT402' (261mW ERP 24.17dBm)
See http://www.thelink.co.uk
Delboy's review : http://www.delboyenterprises.co.uk/telcom_te200_review.htm
"Seem to have equal if not better range than my older Telcom TW1000 sets, audio not as crisp but more "lifelike" on the 200's. Very good value" ... "the only thing wrong with them is the battery life" (AAA)
Some problems have been noted with units losing their programming and defaulting
to the 14 USA FRS channels - rendering them useless in Europe. Can happen when a
power-on glitch resets the circuitry.
"The radio does not have an auto shut off point when the batteries get low. It stays
on until every last drop of power is taken from the batteries. Bad for the batteries and the radio!
I suspect that the EPROM which stores the frequencies must wipe itself when this happens!"
see
(www.network54.com Forum message)
"reprogramming telcom te 200 (FRS back to PMR), by paul usher
the fix was to reprogramme it by linking jp3
then powering up - gives a display of 0 to 3.
Select 0 then power off normally, remove link,
thats it all back to normal. You may wish to see what the other
numbers do, it's fun and safe.
Jp3 jumper pads are located just below the tx button, take care not
to short to the tin screen!"
WT-405
EXTERNAL PIC
(OR LOCAL)
The 401 (i.e. TE-200) without FM radio
38 CTCSS, VOX, Auto power save, Low battery indicator, Headphone jack, Roger beep,
Call and monitor functions, Flip-up antenna, Auto scan, Various calling tones, LCD backlight,
Key lock, Rechargeable function, auto CTCSS tone find
500mW PMR, KDR, FRS, and PRS versions, 10mW LPD version made
Batts: 4AAA
seen as Telcom TE-150, and in dualband guise as FlyCom FlyTalk Twin, Team DualTalk, DNT WT77, DNT WTR8
Regarded as excellent for features, for the price, but somewhat flimsy, not for children or outdoor use!
spkr/mic: "standard 2.5mm stereo plug, tip is mic (DC supply out to electret mic - if feeding it directly from the line out/spkr out of your PC a DC blocking capacitor, value roughly 1uf to 47uf will be required in series with the audio signal). Ring (middle contact) is spkr audio out." - thanks GrahamG
WT-415
EXTERNAL PIC
(OR LOCAL)
38 CTCSS, VOX, Auto power saving, Low battery indicator, Headphone jack, Roger beep, Call and monitor functions,
Auto scan, Various calling tones, Key lock, LCD, Rechargeable function
500mW PMR, KDR, FRS, and PRS versions, 10mW LPD version made
Batts: 4AAA
seen as Conrad Pocket Comm One, Kombix Flash, and in dualband guise as Conrad Pocket Comm Double, Firstline FWT-415?
WT-417
EXTERNAL PIC
(OR LOCAL)
38 CTCSS, VOX, Auto power save, Low battery indicator, Headphone jack, Roger beep, Call and monitor functions,
Auto scan, Various calling tones, Key lock, Blue backlight LCD, Changeable housing, Rechargeable function
500mW PMR, KDR, FRS, and PRS versions, 10mW LPD version made
Batts: 4AAA
Seen as Telcom TE-157 & TE-145, Kombix Air, (Golden Dragon?)
Dualband capable : seen as Team UHF-Handy
Mods :
http://www.delboyenterprises.co.uk/446_2003/telcom_te150_mods.htm
Lock or unlock : "Press and hold the confirm/power button then press the channel up button" says one person, another says "combination is the same as the TE-150, with the unit on, press and hold down the up button, then momentary press the power button, then release the up button"
Headset : tip=mic ring=spkr ?
FRS: WT-418 (FCC ID PERWT418 - 0.11W ERP)
WT-419
EXTERNAL PIC
(OR LOCAL)
2W/500mW Pro PMR - will a 446 version be available?
Batts: 2AA
WT-431
EXTERNAL PIC
(OR LOCAL)
Summer 2003. 38 CTCSS, Auto power save, Low battery indicator, Soft Antenna,
Headphone jack, Roger beep, Call and monitor functions,
Auto scan, Various calling tones, Key lock, Green backlight LCD, Rechargeable function
500mW PMR, KDR, FRS (WT-342) versions, 10mW LPD version made.
Batts: 3AAA
Seen as Pocket Comm Active, Flycom FlyTalk Duo, Lafayette Solution, (Golden Dragon?)
FRS : WT 432 (FCC ID 'PERWT432') (claimed 450mW, tested ERP 200mW). Manuals, schematics etc., at FCC site.
WT-439
EXTERNAL PIC
(OR LOCAL)
A cut down WT-441 with No CTCSS or Out-of-range Detection & Alert
Scan, Vox
Batts: 4AAA
WT-441
EXTERNAL PIC
(OR LOCAL) (2003)
38 CTCSS (std), Scan, Vox, Out-of-range Detection & Alert, Independent Baby
Phone Setting, Call & Monitor Function, 8 Calling Tones, Roger Beep, Key Lock,
Selectable Power Output (500mW / 10mW), Auto Power Save, Low Battery Indicator,
Rechargeable Function, 54 x 37 x 97 mm,
KDR/FRS/LPD/PRS477/409 versions available,
Batts: 4AAA
seen as DNT Young 446, and simpler WT-439, Intek MiniCom Duo
hidden menu: enabling you to de-activate two items (maybe more?) in the radio's menu, disable ctcss codes, or the power saver... keep the 'ok'+'up'+'down' keys pressed when switching on the unit and keep them pressed until the hidden menu appears. - thanks Fabio
WT-535
EXTERNAL PIC
(OR LOCAL)
2004. 38 CTCSS, 83 DCS, 99 DTMF, Dual watch, Out of Range Alert, vibe,
Baby Monitor function,
Selectable Power Output, 86mm x 28mm x 55mm
Batts: 4AAA
WT-537
EXTERNAL PIC
(OR LOCAL)
CTCSS? Scan? Vox?
Squelch Control, Call & Monitor Functions, Roger Beep, Auto Power Save,
Low Battery Indicator, Headphone Jack, Key Lock, Recharge,
KDR 444MHz / LPD 433MHz versions
Batts: 3AAA - alk. 17hours (90%, 5%, 5%)
Similar to the WT-545/431
Seen as Intek Scout 08, DNT WT53
WT-543
EXTERNAL PIC
(OR LOCAL)
2004. 38 CTCSS, scan, vox, Scramble Privacy Protection,
Out of Range Alert, Remote Monitor,
Adjustable Squelch Control,
Baby Phone,
Roger Beep,
Key Lock,
Key Tone,
PTT Earphone Jack,
Auto Time Out Power Off,
Low Battery Indicator
Batts: 4AAA
WT-544
EXTERNAL PIC
(OR LOCAL)
small and round.. just like the Taejin 5821!
38 CTCSS, Scan, Vox, Scrambling for Privacy Protection,
Call & Monitor Function,
Clock & Alarm, Time Counting, Flip-up Antenna,
Auto Power Off,
Squelch Control,
Auto Power Save,
Low Battery Indicator,
Headphone Jack,
Roger Beep,
Various Calling Tones,
Key Lock,
Recharge,
KDR 444MHz / LPD 433MHz / FRS+GMRS 462MHz / PRS 477MHz / 467MHz / 409MHz versions.
Batts: 1 x Lithium
WT-545
EXTERNAL PIC
(OR LOCAL)
CTCSS? Scan? Vox?
Green LCD Backlight,
Squelch Control, Call & Monitor Functions, Roger Beep, Auto Power Save,
Low Battery Indicator, Headphone Jack, Key Lock, Recharge,
KDR 444MHz / LPD 433MHz versions
Batts: 3AAA - alk. 17hours (90%, 5%, 5%)
Similar to the WT-431
WT-546
EXTERNAL PIC
(OR LOCAL)
(late 2005) 38 CTCSS, scan, vox, dual watch, stopwatch, FM radio option, Monitor, selectable power output,
Rechargeable, Alert Key (optional), Auto time out power off
Batts: Lithium
Seen available from Maplin, and as Flytalk Smart
WT-547
EXTERNAL PIC
(OR LOCAL)
38 CTCSS, Scan, Vox,
Blue LCD Backlight,
Squelch Control,
Call & Monitor Function,
Roger Beep,
8 Calling Tones,
Auto Power Save,
Low Battery Indicator,
Headphone Jack,
Belt Clip,
Changeable Housing,
Key Lock, Recharge,
KDR 444MHz / LPD 433MHz / FRS 462MHz / PRS 477MHz / 467MHz / 409MHz versions
Batts: 4AAA - 15 hours
WT-548
EXTERNAL PIC
(OR LOCAL)
(late 2005) 38 CTCSS, scan, vox, Monitor Function, Selectable Power Output, Power save
Batts: 3AAA Rechargeable
Seen as DNT Bingo
WT-549
EXTERNAL PIC
(OR LOCAL)
(late 2005) 38 CTCSS, keylock (option), Roger Beep,
Batts: 3AAA Rechargeable (optional)
WT-551
EXTERNAL PIC
(OR LOCAL)
(2006) 38 CTCSS, scan, vox,
Out of range alert,
Monitor function,
Power save,
Low battery indicator,
Key lock,
Scramble,
8 calling tones,
Selectable power output,
Bonus channel (?)
Batts : 4AAA
A UK based TTI (first known as Outerzone) is "responsible for the FreeQuency (consumer PMR446),
TTI (commercial PMR and PMR446), Outerzone (accessories)
and @ctive (consumer PMR446) brands in the UK." - http://www.outerzone.ltd.uk
also stocked at www.radios-uk.com
see other section for another TTI - Trident!
See http://www.tti.uk.com for downloads (brochures, service manuals etc)
FRS-1000 EXTERNAL PIC (OR
LOCAL)
Base Station FRS, also made for PMR446
38 CTCSS (67,71.9-250.3) +off, vox, scan, dual watch, key beeps + off, roger bleep +off, key lock, hi/lo power
500 or 100mW (or 50mW),
tone scan, 2 Memory Channels, Back lighted LCD Display, Battery Status Indicator,
CallTone (5 different ringer tones available), RSSI (received signal strength indicator),
Auto Power Save Circuit, Monitor, TX/RX Led, Digital Volume Control,
170 mm(H) x 122 mm(W) x 50 mm(D) without antenna, sens -118dBm > 0.25 uV (12dB SINAD) (0.5 for 20dB quieting),
TX current 350mA, FM hum and noise -40dB, 3.5mm / 2.5mm standard jacks
Batts: 4AA + plug in DC
FRS : FCC ID 'PDHFRS-1000' (full 500mW ERP)
One reviewer writes "Distorted audio.. Vox does not appear to work on mic jack regardless of eQSO settings.. The display sometimes fails to come or goes garbled when the machine is picked up... Noise breaks through even though CTCss is set... problems were the same on both.. build quality is very poor" - whereas Delboy liked his! http://www.delboyenterprises.co.uk/446_2002/xt1000_pmr_446_review.htm
"the volume level adjustment doesn't 'do' low, and even at the lowest setting it is just too loud! There is no way to set it at a reasonable listening level for normal home use. Loud audio might be fine in warehouse or whatever, but you want to be able to set it to low for other uses. Wouldn't have bought the XT1000 had I have known about this "feature" beforehand. I also find the audio quality to be a little muffled and not as clear as it might be."
Manual http://www.tehnoturg.ee/kasutusjuhend/PB-1000-R%20MANUAL.PDF
Manual for FRS version :
www.smartgroups.com/vault/familyradioservice/Public/frs-1000_manual.pdf
http://www.ttikorea.co.kr/english/e-p-radioc-2.htm
Manual (Spreadsheet!) http://www.ttikorea.co.kr/manual/FRS-1000.xls
Seen as DNT DRS-1000, K-PO/Intek PB-1000R (also from Team?), Xtreme XT1000, Albrecht Tectalk Office, Pan PI-1012 (http://www.pan-international.de/Endverbraucher/PI_1012.pdf) (some minor differences in speaker grilles, display surround and PTT buttons), MultiCOM Control, FlyTalk tti TOP, SHC PR-1000B, Albecom BR-4000
Dual band (PMR & LPD) verions : DNT DRS-2000 and Intek PB-1000L
FRS : Audiovox
EXTERNAL PIC (OR
LOCAL)
PMR-101TX EXTERNAL PIC (OR
LOCAL)
38 CTCSS, vox (5 levels), scan, dual watch, batt level, signal meter, key lock,
External SPEAKER,MIC,CHG JACK, sens -119dBm (12dB SINAD), 118 x 53.7 x 44 mm (W/O Antenna)
Price level : 70 (twin pack - just add batts)
Batts: 4AAA
http://www.ttikorea.co.kr/english/e-p-radioc-11.htm
Other versions : FRS-3000, GMRS-1200, Multicom Pat (Korean Version)
PMR-120TX EXTERNAL PIC (OR
LOCAL)
A scaled down 122TX, at 120mm tall it's about 88% of the size of the 122.
300mW, 3AAA instead of 4AAA, jack = recessed/long-reach 2.5mm stereo,
no drop in charger (or option) - wall charger only, no monitor button
Seen as Flycom 'FlyTalk Micro', Tectalk Smart
PMR-122TX EXTERNAL PIC (OR
LOCAL)
38 CTCSS +off, vox (fixed level), scan (5 second pause only), roger beep +off, key bleeps (always),
headset (+PTT) jack: 3.5mm stereo (tip=mic,ring=spkr); doubles as charge jack
(sleeve= -, ring unused, tip= + ), 137mm tall
Price level : 60 (twin pack, NiMH batts, docking charger)
Batts: 4AAA (Charging time stated as typically 12-15 hours)
Review at http://www.446user.co.uk/review_index_all.html
Seen as Flycom 'FlyTalk Look'
FRS version Audiovox GMRS1202 (FCC ID 'PDHGMRS120', TTI Tech Co., Ltd.,
schematic from Eintech Co, 288mW ERP)
FCC ID 'PDHGMRS122', 262mW - 745mw (GMRS)
PMR-200W EXTERNAL PIC (OR
LOCAL)
(summer 2003) Wristwatch PMR, 38 CTCSS, Vox, mini antenna approx. 27 mm, scan, roger beep, socket,
width 70 mm, height of 45 mm, depth 20 mm,
Batts: rechargeable : Li-ion 3.7 Volt 540 mAh
http://www.outerzone.ltd.uk/products/proddetail.asp?pc=PMR-200W
review http://www.446user.co.uk/review_index_all.html
Seen as Flytalk tti Watch
manual http://www.thiecom.net/ftp/tti/pmr446watch/pmr446watch-manual-e.pdf
US GMRS200W : FCC ID 'PDHGMRS200W', 142mW ERP
PMR-201TX / 201FQ EXTERNAL PIC (OR
LOCAL)
38 CTCSS, VOX, Scanning, Dual Watch, CTCSS Scan, batt level,
Roger Beep TONE ON/OFF, Beep TONE ON/OFF,
Monitor, LCD Back Lighting, Key Lock, Power Save, memories, External SPEAKER/MIC/CHG JACKS
(one 2.5mm jack and one 3.5mm),
H x W x D : 53.4 x 98 x 28 (W/O Antenna), Sensitivity > -119dBm (12dB SINAD), 5 seqment signal meter,
7 volume levels
Price level : 90 (twin pack with batts and chargers)
Batts : 4AAA (charging time 10-12 hours; no more than 20 hours)
see http://www.cbshop.com/k-po_PMR201.htm
review http://www.446user.co.uk/review_index_all.html
Seen as K-PO PMR-201, Pan PI-202 (http://www.pan-international.de/PAN_PI_201.pdf)
FRS version is "MultiCOM Plus"
GMRS version GMRS-1535 (i.e. Audiovox)
http://www.ttikorea.co.kr/english/e-product-a.htm
PMR-301FQ EXTERNAL PIC (OR
LOCAL)
Not seen on sale.
38 CTCSS, VOX, Scan, Dual Watch, Embedded Electronic Compass,
Auto Power Save Mode, Battery Status Indicator,
Roger Beep TONE ON/OFF, Beep TONE ON/OFF, Key Lock, channels Memory,
External SPEAKER,MIC,CHG JACK,
53.4 x 98 x 28 mm (W/O Antenna), sensitivity -119dBm (12dB SINAD)
Batts: 5AA
GMRS version GMRS-1545
http://www.ttikorea.co.kr/english/e-p-radioc-13.htm
PMR-500-TX-Slimline EXTERNAL PIC (OR
LOCAL)
38 CTCSS, FM radio 88-108 MHz, vox, 14 x 55 x 134/94 mm, 76g,
high/low power, key bleeps, roger beep, key lock, monitor, baby monitor,
headset socket, charging
Batts: Li-ion
"sensitive, with excellent audio both ways - which far outweighs the slow to charge and slow CTCSS decode issues"
Seen as Flytalk Slim
PMR-505-TX
Similar to 500-TX, but no FM radio.
PMR-701FQ EXTERNAL PIC (OR
LOCAL)
Not seen on sale.
38 CTCSS, VOX Mode, Scanning, Dual Watch Scan, CTCSS Tone Scan, Auto Power Save Mode,
Battery Status Indicator, Roger Beep TONE ON/OFF, Beep TONE ON/OFF, Key Lock, Channels Memory,
External SPEAKER,MIC,CHG JACK, 118 x 53.7 x 44 (W/O Antenna),sensitivity -119dBm (12dB SINAD)
Power: DC 6.0V ( Ni-MH)
GMRS version GMRS-7000 (i.e. Audiovox)
http://www.ttikorea.co.kr/english/e-p-radioc-14.htm
TX-1446 EXTERNAL PIC (OR
LOCAL)
(Autumn 2005)
50 CTCSS / 104 DCS, VOX, Scan, Battery Alert, Monitor, Dual Watch, TOT (Time-out Timer),
Squelch Level Adjustment, BCLO (Busy Channel Lock Out), Clone,
(H x W x D) : 98 mm x 63 mm x 31 mm (w/o Antenna),
Standard MIL - STD - 810 C/D/E
Batts: Li-Ion pack 1000 mA
seen as Albrecht Tectalk PRO
TX-446 (TTI-446) EXTERNAL PIC (OR
LOCAL)
(summer 2003) Pro standard, 50 CTCSS, 104 DCS, mil standard robustness,
Time Out timer ( off, to 240 sec), 3.5mm/2.5mm sockets,
132 mm x 56 mm x 36 mm (260mm high incl antenna?), 350g, sens 0.25 uV (12dB Sinad)
Batts: rechargables...
"The RF performance of the TX446 is outstanding. It is the most sensitive radio that I have used to date" - review http://www.446user.co.uk/review_31.html
german manual http://www.pmr-funkgeraete.de/shop/wws/stuff/bda_tti446.pdf
http://www.outerzone.ltd.uk/products/proddetail.asp?pc=tx-446
"May. 1999 : Developed a PMR .."
Has a Kace Profitek as an FRS product
See also TTi (FreeQuency)
TMR-300
EXTERNAL PIC
(OR LOCAL)
50 CTCSS, 84 DCS, VOX, SCAN, Ringer (3 types), Receiving signal strength indicator,
Battery level meter indicator, 150g without Batteries, 110 x 65 x 35 mm
Batts: 4AAA (20 hours)
See http://tti.koreasme.com/viewproduct_3_e.html
Seen as an Audiovox GMRS-1525
825
EXTERNAL PIC
(OR LOCAL)
No CTCSS?, scan, keylock. Argos 5530685
Batts: 3AAA
845
EXTERNAL PIC
(OR LOCAL)
38 CTCSS, handsfree, keylock
Batts: rechg.
Argos #553/0472 : quad pack for 90 (2005), Comet #234915
885
EXTERNAL PIC
(OR LOCAL)
38 CTCSS, vox, Super bright backlit LCD screen, Keypad lock, Dual desktop charger pod,
headsets with boom mics.
Batts: rechg. (30hours)
Argos #553/0441 : twin pack for 60 (2005)
MR-218P
EXTERNAL PIC
(OR LOCAL)
38 CTCSS, vox, lock, power save, ear/mic jacks
Batts: 4AAA
VC-208
EXTERNAL PIC
(OR LOCAL)
(spring 2003) 38 CTCSS, Scan, VOX, stopwatch, Digital volume, Low-battery indicator, lock, Auto power off, External speaker and
microphone jack, Power-saving, Monitor, Auto squelch
Batts: 4AAA
Not yet seen as available to buy
VC-215
EXTERNAL PIC
(OR LOCAL)
No CTCSS, VOX, Call alert, Key lock, Splash resistant, Roger beep, LCD panel with backlight,
Last channel save function, Scan function, Monitor key, Speaker/microphone jack, Belt clip, Rotary volume
control with power on/off
Batts: 4AAA
Not yet seen as available to buy
VC-231
EXTERNAL PIC
(OR LOCAL)
(late 2003) 38 CTCSS, Scan, VOX, Stopwatch, Call alert, Key lock, Monitor key, Auto Squelch, Speaker/microphone jack,
digital volume, power save
Batts: 3AAA
Seen as Switel WT 370, Audioline PMR Easy 011, Italk 1500
VC-232
EXTERNAL PIC
(OR LOCAL)
(late 2003) 38 CTCSS, Scan, Vox, Torch, Stopwatch, Panic Alarm, Illuminated LCD Display, Battery Low Indicator,
Digital Volume, Call Alert, Key Lock, Auto Power Off, Speaker And Microphone Jack,
External DC Jack With Re-Chargeable Circuit, Power Saver, Monitor, Auto Squelch
Batts: 4AAA
Picture suggests it receives FM stereo?!
Not yet seen as available to buy
VC-901
EXTERNAL PIC
(OR LOCAL)
Yellow FRS version EXTERNAL PIC
(OR LOCAL)
38 CTCSS +off, 10 call tones, Illuminated LCD panel, Low-battery indicator, Digital speaker volume control,
Key lock function, Auto power off, Scan function, External DC jack, 2.5mm External speaker and microphone jack
(Centre=Audio Out, Ring=mic in, Outer=Ground),
Power-saving function, Monitor function, Auto squelch, VOX (voice activation), Stopwatch function,
113 x 60 x 39mm, Roger beep
Batts: 4AAA, plug in charger
seen as NTL TWR-500, DNT AlphaTalk, Superb Sound Products PMR-446, Admiral (http://www.pmr.pl/pmr.htm), Ondico PMR 901
Manual http://www.dnt.de/download_neu/AlphaTalk/alphatalk.pdf (Eng p17)
FCC ID 'OJ7901FRS0600' (manual at FCC site) (.46W ERP) &
FCC ID 'OJ7901GMR0903'
Some reports of muffled audio due to poor mic elements. Fixed 60sec TX time-out.
VC-902
EXTERNAL PIC
(OR LOCAL)
Basic : 2 channels, NO CTCSS, Battery low indication, digital volume, jack, power save, monitor, auto squelch
Batts: 3AA
Not yet seen as available to buy
VC-904
EXTERNAL PIC
(OR LOCAL)
scan, beep, no CTCSS, 51-145-27 mm
Batts: 4AAA
Seen as DNT Miko
FRS version FCC ID OJ7904FRS0401
VC-914 (same as 904?)
EXTERNAL PIC
(OR LOCAL)
Seen as Ondico PMR 914
VC-968
EXTERNAL PIC (OR
LOCAL)
38 CTCSS (std), Scans, VOX, pack of two with dual charger & headsets, Backlit LCD, Digital Volume control,
Battery low indication, Key lock, Stopwatch, "12.5 x 5.3 x 26.4 (cm)", 2.5mm stereo socket (tip=mic, ring=spkr)
Batts: 4AAA
Seen as Binatone MR 600 (and MR 610 pair with black sides), Switel WT 227, Alecto FR-28
"At first sight they seem every bit as good as, or better than, the other radios I have experienced such as Audiovox, Eurowave, Telcom 100 and Binatone 100. They come with a wide selection of ring tones, vox,an "unscrambling device", and a "bug detector"! The audio quality is good for such a budget unit and compares favourably with my 70cms amateur radio hand-helds. Standard AAA cells can be used, making sure of course that one doesn't drop the radio into the charger with these type fitted! The battery packs appear to be unique, consisting of four AAA Ni-Cds strapped together. The output of the pack using two of the cell terminals for connecting to the radio." - Tom
Sadly, CTCSS is not filtered from earphone audio *hum!*
Push-once PTT : "switch on and hold the PTT button, there will now be a little arrow at
the bottom left of the screen. When you talk, you can let go of the PTT and it will still
transmit, then when you press it next time it will stop transmitting.
To put it back to normal mode, switch off & back on."
Manual (multilingual)
(german) http://www.alecto.info/int/FR-28.PDF
or http://www.pmr446.de/katalog/binatone/mt600.pdf
FRS version Columbia FRS-14ND : FCC ID 'OJ7968FRS0401' (0.25W ERP)
VC-969
EXTERNAL PIC
(OR LOCAL)
(late 2003) No CTCSS, Scan, Illuminated LCD Display, Battery Low Indicator, Digital Speaker Volume Control,
Call Alert (Send Ring Tone During Transmit Mode), Key Lock, Auto Power Off,
External DC Jack, Speaker And Microphone Jack, Power Saver, Monitor, Auto Squelch
Batts: 4AAA
Not yet seen as available to buy
VC-988
EXTERNAL PIC
(OR LOCAL)
Basic 2 channel version of 989, NO CTCSS, Battery low indication, digital volume, jack, power save, monitor
Batts: 3AA
Not yet seen as available to buy
VC-989
EXTERNAL PIC
(OR LOCAL)
38 CTCSS, Scan, Vox, Digital volume (8 steps), Low-battery indicator, lock, Auto power off (+off), beep (+off)
External speaker and
microphone jack, Power-saving, Monitor, Auto squelch, 6-1/2L x 2W x 1D inches, sens -119dBm (12dB SINAD)
Batts: 4AA
Seen as Doro-Audioline PMR Easy 006, Switel WT 008 / 108
Manual : (German + Eng)
http://www.thiecom.net/ftp/audioline/006/pmr006-anleitung-d.pdf
FRS : Audiovox FR1400 : FCC ID OJ7989FRS0100 (manual at FCC site)
Babyfon BM 1000 S
EXTERNAL PIC (OR
LOCAL)
PMR Baby monitor. 38 CTCSS
BM 800 looks same but is 863 MHz
FP200 (Quickcall City) EXTERNAL PIC (OR
LOCAL)
Black or Yellow version of the Ross Callfree
See http://www.be-direct.co.uk/details.asp?ID=565
See VIVANCO REVIEW, hints and tips
V4 FreeTalker EXTERNAL PIC (OR
LOCAL)
10mm thick, 80g with battery (3.6V Li-ion)
V4+ HandyTalker EXTERNAL PIC (OR
LOCAL)
V40 CyberTalker
V42 MetroTalker
WT 201PM EXTERNAL PIC (OR
LOCAL)
First found Jan 2004
38 CTCSS, VOX (3 levels), scan
LP-4502E / A80 "Ramous" / LP-446
EXTERNAL PIC (OR
LOCAL)
First found Jan 2004
MIL-810D pro model. 38 CTCSS (std), vox, 55(W) x 95(H) x 31(D) mm, 310g ( 11oz ). No DCS.
21.4 MHz & 455 kHz IF. Sensitivity (12dB Sinad) better than 0.22uV. TX and RX can be
on different channels. 'Hazard channel' to ch 1, no tone. Spkr : 3.5mm mono, Mic
2.5mm (stereo).
Manual at their website.
US FRS : LP-4502 FCC ID 'NJQLP-4502'
Minitalk 99 (PMR) - LPMR_A2S EXTERNAL PIC (OR
LOCAL)
First found on WWW in Jan 2001.
Based on the original FRS model. Yellow, Black or Silver. 50 x 84 x 25mm, 140g.
Fast scan, 38 CTCSS (67,71.9-250.3), Programmable auto power off, 4 level VOX without accessories,
remote monitoring, 2 TX powers, 7 tone calls,
power save, low battery warning, Signal meter, sensitivity -120 dBm, Standby average current 25 mA
Button bleep
Batts: 3AA
see http://www.wintec.com.tw/product/walkytalky/pmr446.htm
Also claimed to be a product of Alcon Telecom, Taiwan - http://www.alcon-stc.com.tw !
and Citisound (FRS-120)
Also seen as (FRS) Audiovox FR314 : FCC ID 'NJQFRS-268'
See also the IntaRide radio at http://www.intaride.com
"Master Distributor for EMEA region (Europe, Middle East & Africa )" - for Art Protech TC series
X2X -Like the Trendy Blue TB5095
X33XIF
EXTERNAL PIC (OR
LOCAL)
Noticed early 2004. Wristwatch 446. 38 CTCSS, scan, vox, 300mW
Batt: Replaceable Rechargeable Lithium-ion battery & chargers included
see also http://www.softmag.no/act_arbaandsur_walkietalkie.htm (German)
"Same internals as the TTi PMR200W apparently"
An X33X version doesn't have CTCSS
US FRS : KP3X (FCC ID 'QL2FRSKP3X', Global Link Corp., 150mW ERP),
US GMRS/FRS : X33X (FCC ID 'QL2FRSFW34', Global Link Corp., 117 / 148mW ERP)
US GMRS : X3X (FCC ID 'QL2FRSFW14', 0.14W)
VX-146
EXTERNAL PIC (OR
LOCAL)
Late 2002. 38 CTCSS, 104 DCS, sens 0.89µV 12 dB SINAD, good antenna
16 channels must be programmed (which 446 channel + CTCSS/DCS code)
Batts: Custom NiCad pack
http://www.frisk.fi/radio-tele/uutuudet
VX-246
EXTERNAL PIC (OR
LOCAL)
DTMF Keypad, 38 CTCSS AND 108 DCS, Paging, 16 memories, cloning
Voice encryption (scrambling requires option FVP-25),
(available early 2001), sens -119dBm/0.25µV (12dB SINAD), 0.8µV (20dB SINAD)
323g, 58 x 108 x 26mm (WxHxD)
See HopeValley http://www.hopevalleyradio.co.uk/VX246.htm
This French page http://www.ges.fr/Accueil-PMR446.asp
shows some Yaesu UHF PMR sets configured for the PMR446 channels
... such as the VXF-20
see http://www.argos.co.uk/static/Product/partNumber/5530805.htm
Looks like a rounded version of Talkcom TC-500
A version of the Stabo Flytalk is shown at http://www.elettronicanobile.it/shop/it/dept_93.html
FreeTalk - same as Maycom MH-446
Me2You EXTERNAL PIC (OR
LOCAL)
(spotted 2002) an Art ProTech TC-109
Me2You Radio EXTERNAL PIC (OR
LOCAL)
(spotted 2004) an Art ProTech TC-209
SuperTalk 446 EXTERNAL PIC (OR
LOCAL)
(spotted 2002) same as Maycom OH-446
Trio EXTERNAL PIC (OR
LOCAL)
(2002) No CTCSS
Batts: 4AAA
FRS version : RadioShack 21-1866
You2Me EXTERNAL PIC (OR
LOCAL)
(spotted 2004) an Art ProTech TC-309
Found one I don't know about?! Spotted an error? Please
let me know - tell us at
RF-man's
Message Board.
Thanks in advance.
Sites that sell/detail a wide range of PMR446, worth checking for new models :
(if you find a new radio using these links, please have the decency to let me know)
http://amateurfunk.funkimporteur.com
http://www.cbfunk2000.de/index.html?pmr-446.htm
http://www.cb-funk-shop.de/pmr.htm
http://www.cbradio.cz/pmr/indexpmr.php3 **
DOC
http://www.cbshop.com/pmr446.htm
http://www.cb-versand.de
http://www.combai.nl/pmr-446.htm
http://www.csil-uk.com/RADIO/Radio_main.htm
http://www.elv.de
http://www.erconline.nl
http://www.funkshop.de
http://www.hamradio.fi
http://www.lublin.mm.pl/~akoma/radia446.html **!
http://home.swipnet.se/alfakom/uhfradio.htm
http://www.maas-elektronik.com
http://www.marcucci.it/english/prodotti/rt.asp
http://msmcomunicaciones.com/index3.htm
http://www.neuner.de / http://www.pmr-funkgeraete.de **
http://members.home.nl/freddie/pmr446.html
http://www.orbito.com/
http://www.pmr446.de/katalog/katalog.htm
http://www.pmr446-online.de forum & links to manufacturers sites
http://www.rigpix.com/lpdmm/lpdmmselect.htm
http://www.superiorsignals.co.uk/pmr446.htm
http://www.thiecom.de/shop1/index.html **
http://www.thunderpole.co.uk/pmr446.htm
http://www.vysilacky.zde.cz/
German : Funk=Radio, Geräte=Devices, Angebote=Offers, Zubehör=Accessories
Spain : UN-110 or UN110, "uso libre", "sin licencia", "8 canales"
Italy : "Ricetrasmittenti", "uso libero", "8 canali"
France : "8 canaux", "Usage Libre", "sans licence", "RPS"
This page is a guide, maintained by an enthusiast, and MAY contain errors no matter how hard I try.
(It wouldn't hurt to tell me!) I do my best, but do your own research also!
For the radio enthusiast, attempting to DX, scan and use PMR446 as a CB band, we'd prefer the unit to resemble an amateur radio, so we'd like the above and also:
The candidates so far are...
.. none yet .. still waiting!
More radio pictures at http://www.rigpix.com
